Removing the Webcam

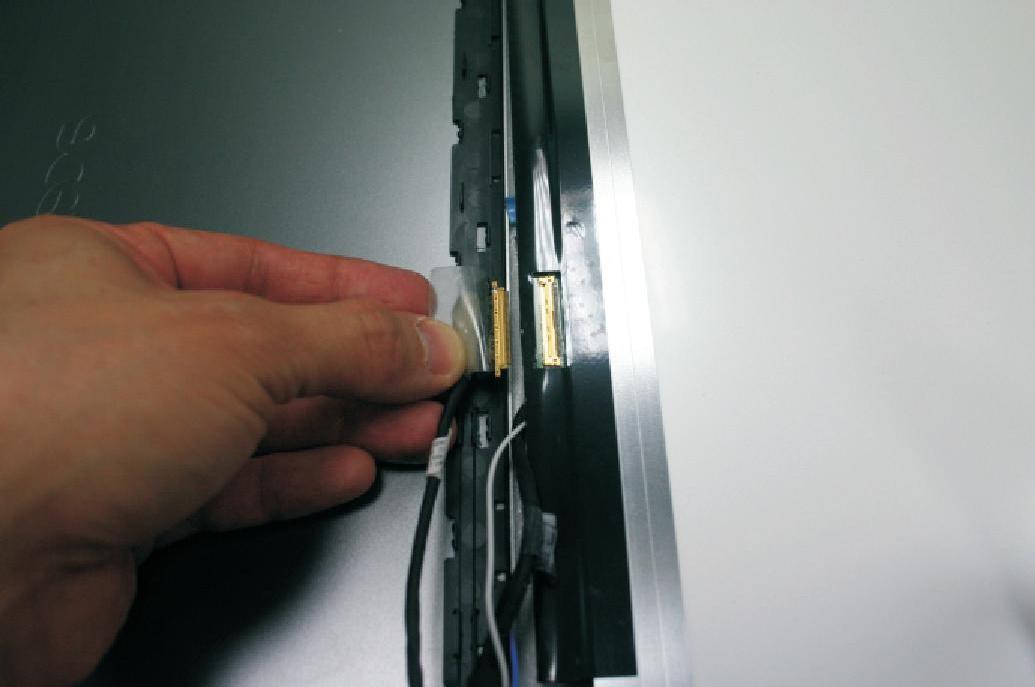

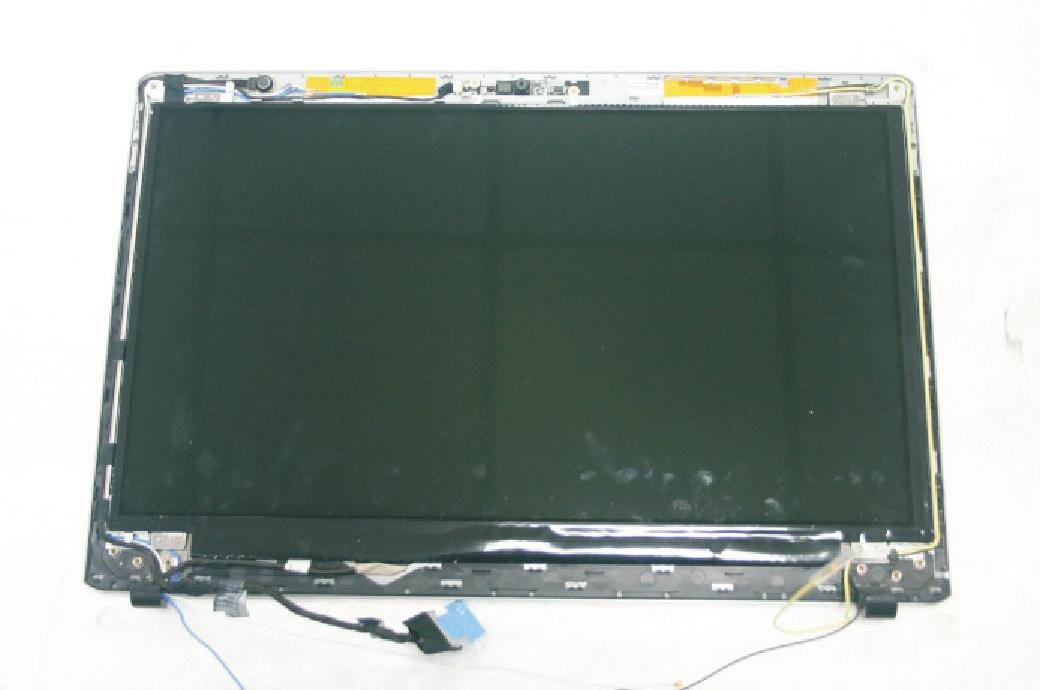

20. Remove the LCD panel from the back cover.

1. See “Removing the Battery Pack” on page 42. 2. See “Removing the Lower Cover” on page 43. 3. See “Removing the Lower Cover” on page 43. 4. See “Removing the Optical Drive Module” on page 44. 5. See “Removing the DIMM” on page 45. 6. See “Removing the Hard Disk Drive Module” on page 46. 7. See “Removing the SSD Module” on page 48. 8. See “Removing the RTC Battery” on page 48. 9. See “Removing the Keyboard” on page 50. 10. See “Removing the WLAN Board Module” on page 51. 11. See “Separating the Upper Case from the Lower Case” on page 52. 12. See “Removing the System Board” on page 58. 13. See “Removing the LCD Module” on page 61. 14. See “Removing the LCD Bezel” on page 70.

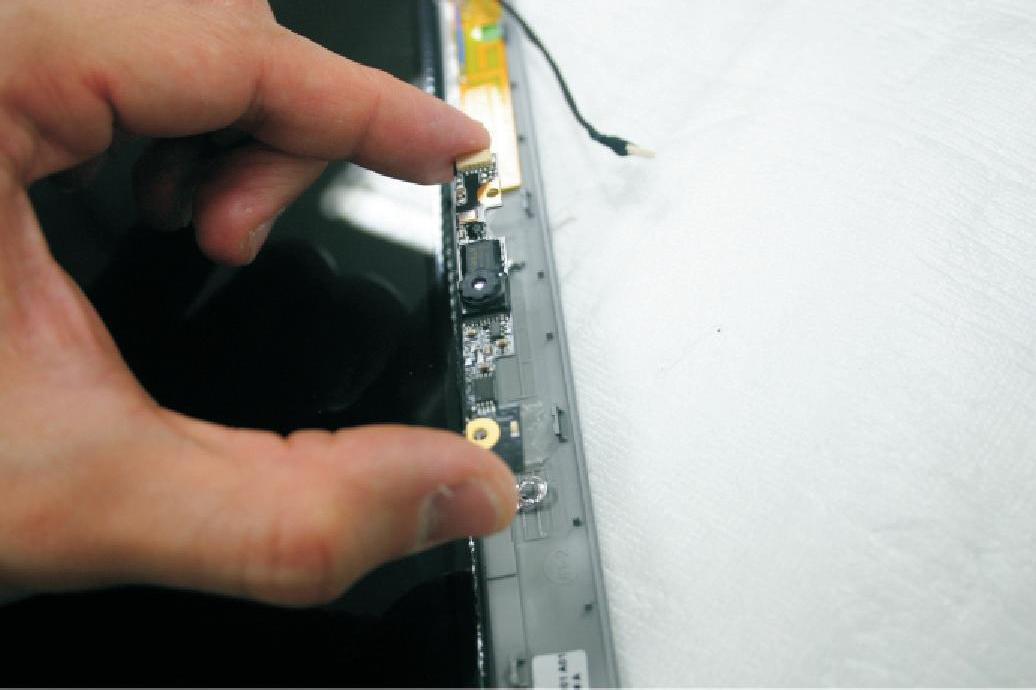

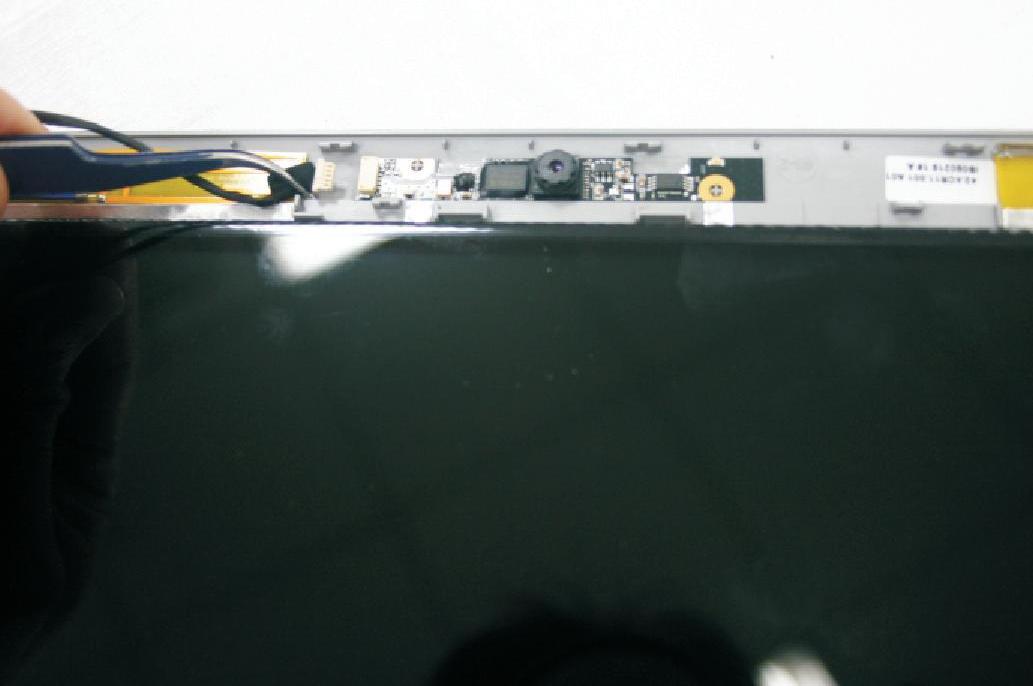

16. Carefully pry loose the webcam.

CAUTION: Only remove the webcam if it is defective as it is glued to the back cover.

Troubleshooting

Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses. 1. Obtain the failing symptoms in as much detail as possible. 2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation. 3. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.) POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen. Other symptoms (i.e. LCD display problems or others). Symptoms cannot be re-created (intermittent problems).

Go To

See “Power System Check” on page 79..

See “Post Code Table” on page 82. “Undetermined Problems” on page 90 See “Post Code Table” on page 82.

See “Post Code Table” on page 82.

Use the customer-reported symptoms and go to “Post Code Table” on page 82. See “Intermittent Problems” on page 89. See “Undetermined Problems” on page 90.
