Replacing the LCD Module

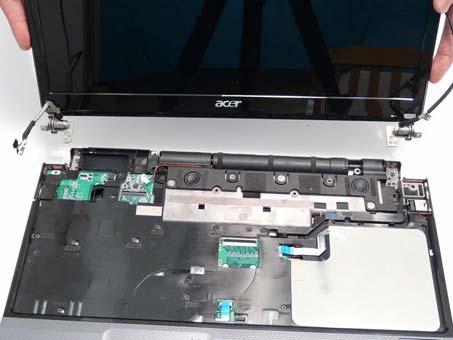

10. Carefully place the LCD Module into the chassis, making sure to align the mounting pins on the LCD brackets with the well son the Lower Cover.

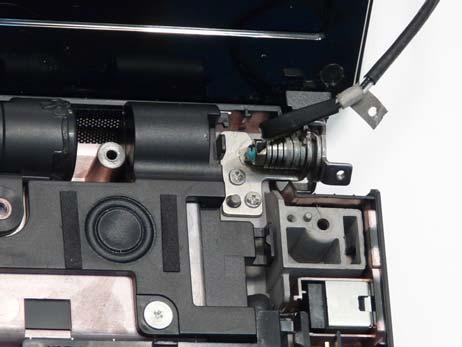

11. Replace the two securing screws for the left LCD hinge.

Step

Size

LCD Module M2.5*5 2

Quantity Screw Type

Step

Size

LCD Module M2.5*5 2

Quantity Screw Type

13. Connect the LCD cable to the Mainboard and insert the cable into the cable channel as shown.

14. Rest the computer on its side with the LCD Module open and push the Antenna cable through the chassis as shown.

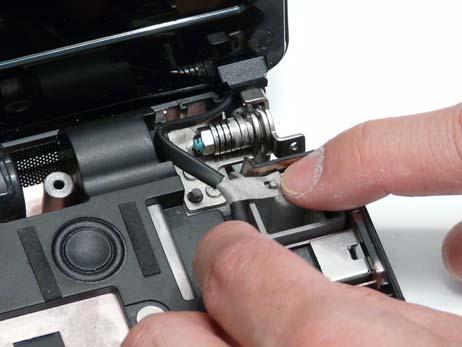

15. Starting from the LCD module, insert the Antenna cable into the cable channels as shown. Note how the cable hooks onto the cable chennel in the speaker module, then is adhired to the pin on the Kensington Lock before passing into the cabel channel on the upper cover

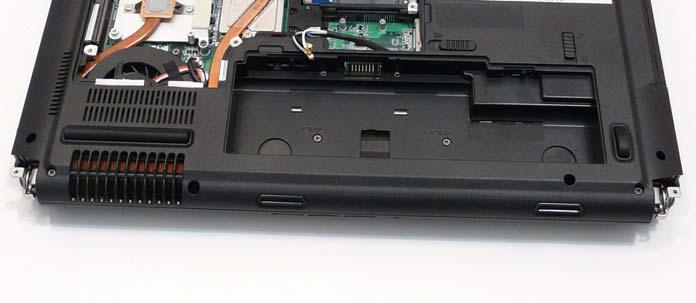

16. Close the lid, turn the computer over, and replace the two screws to secure the LCD panel as shown.

Step

Size

LCD Module M2.5*5 2

Quantity Screw Type
