Removing the Antennas

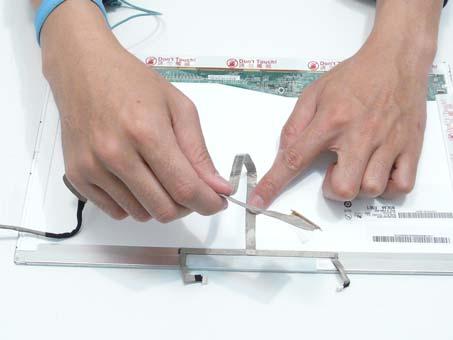

6. Grip the adhesive strip covering the LCD cable connector and pull it back (1). 7. Remove the LCD brackets by pulling them away from the LCD Panel.

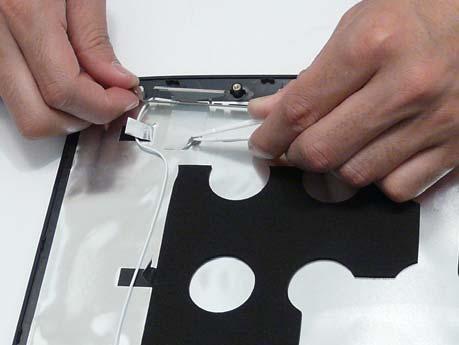

1. See “Removing the LCD Panel” on page 91. 2. Remove the screws holding the antennas in place.
3. Remove the strips holding the antenna cables in place. Ensure the cables are free from obstructions.
5. Remove the antenna cables and assembly from the LCD module.
