Removing the Power Save Board

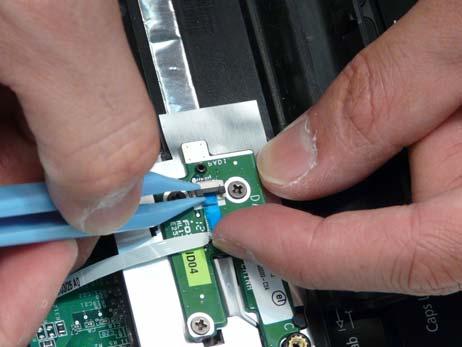

1. See “Removing the LCD Module” on page 68. 2. Disconnect the Power Save Board from the Function Board by lifting the FFC lock and removing the FFC as shown.
3. Remove the two screws securing the Power Save Board to the Switch Cover as shown.
Step
Switch Cover (red callout)
Size
M2.5*4 2
