Replacing the Function Board

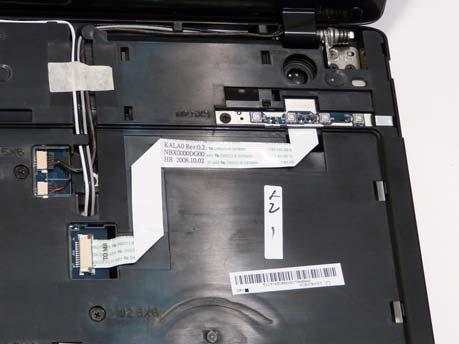

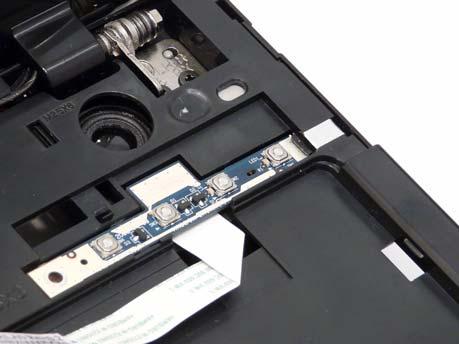

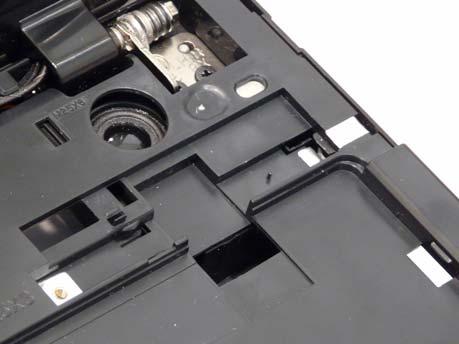

IMPORTANT:The Function Board must be inserted right side first, paying particular attention to the locating pin shown. 1. Insert the Function Board right side first as shown.

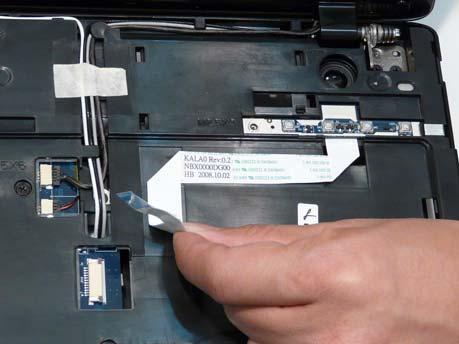

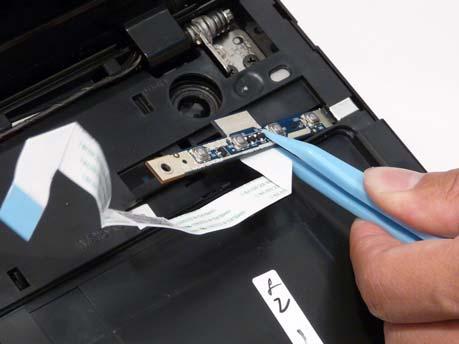

2. Lower the board in to the chassis as shown. Ensure that the locating pin is correctly inserted.

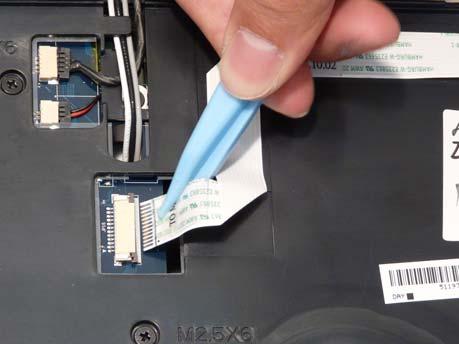

4. Connect the FFC to the Mainboard and close the locking latch. 3. Press down on the FFC as indicated to secure the cable to the chassis.

5. Replace the single securing screw.
