Removing the LCD Brackets and FPC Cable

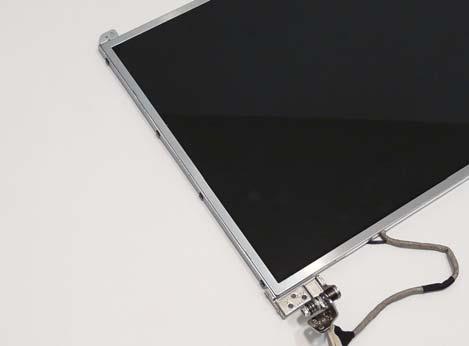

1. See “Removing the LCD Panel” on page 86. 2. Remove the eight securing screws (four on each side) from the LCD Panel brackets.

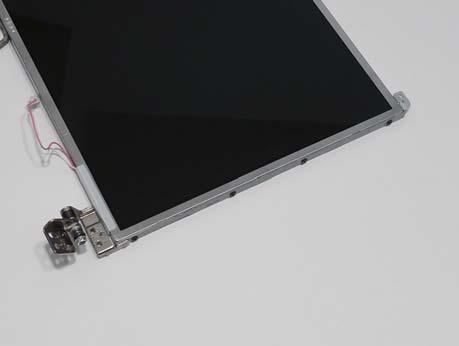

3. Remove the LCD brackets by pulling away from the LCD Panel. 4. Turn the LCD panel over to expose the rear.

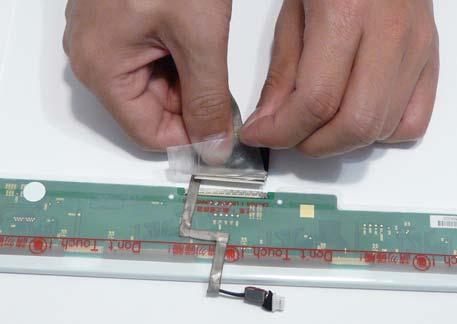

5. Lift the adhesive protector and disconnect the cable from the LCD Panel.

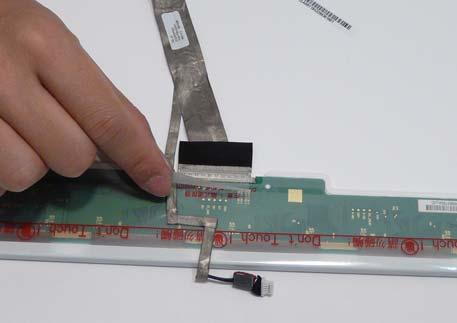

6. Lift the FPC cable from the panel.

Step

Size

LCD Brackets M2*3 8

Quantity Screw Type
