Removing the Hard Disk Drive Module

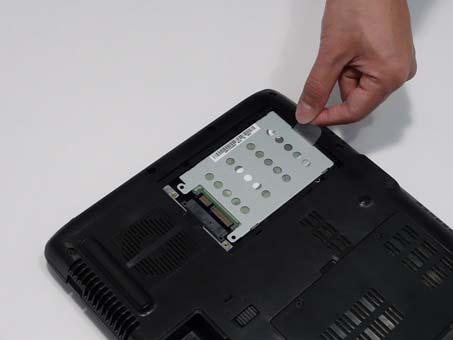

1. See “Removing the Battery Pack” on page 44. 2. Remove the HDD cover, 3. Use the pull-tab to disconnect the HDD from the interface connector.

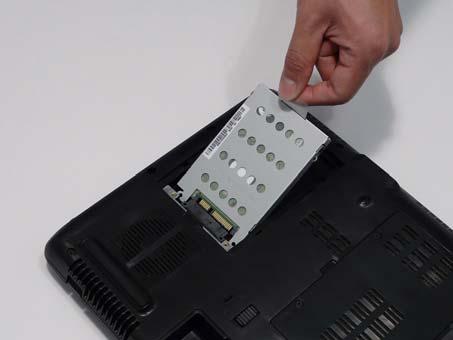

4. Lift the hard disk drive module out of the bay.

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

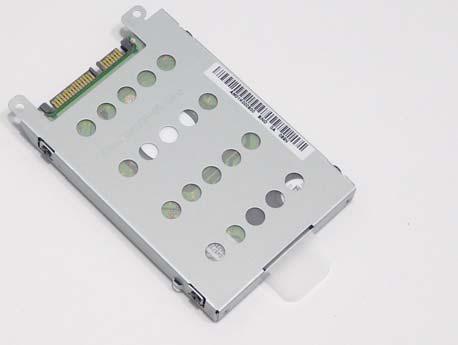

Step

Size

HDD Carrier M3*3 4

Quantity Screw Type

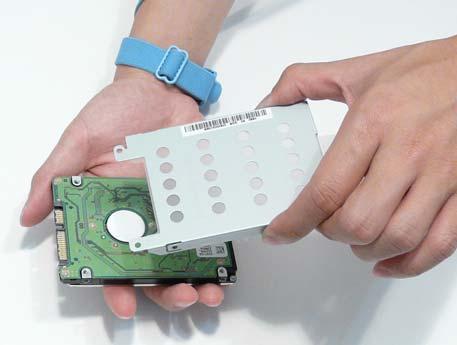

6. Remove the HDD from the carrier.
