Removing the LCD Bezel

1. See “Removing the LCD Module” on page 85. 2. Remove the four screw covers and four screws securing the front bezel to the LCD cover.

3. Starting from the inside top edge, pry the bezel away from the panel. Continue moving along the top, prying the bezel away from the LCD Module. If necessary, use a plastic pry to release the corners of the bezel.

Step

Size

LCD Bezel M2.5*4 4

Quantity Screw Type

p

5. Pry apart the bottom edge of the bezel and push slightly upwards to release the hinge covers.

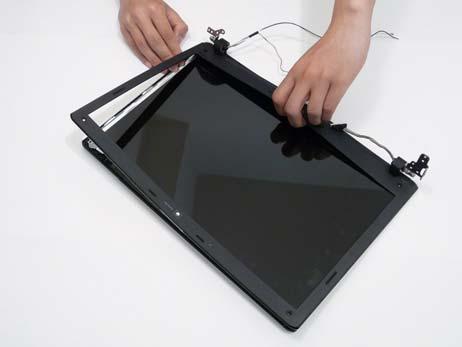

6. Lift up the bezel and remove it from the LCD Module.
