Removing the WLAN Board

1. See “Removing the Battery Pack” on page 45. 2. Loosen the two captive screws in the HDD Cover.

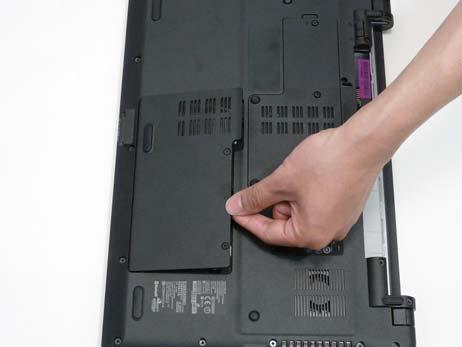

3. Lift the HDD cover up to remove. Use the finger tab to release the six clips securing the cover in place. NOTE: The HDD is also located under this cover.

4. Disconnect the Antenna cables from the WLAN Board. NOTE: Cable placement is White to the AUX terminal (right) and Black to the MAIN terminal (left).

5. Remove the single screw securing the WLAN Board in place.

Step

Size

WLAN Board M2*3 1

Quantity Screw Type
