Removing the Middle Cover

1. See “Removing the Battery Pack” on page 50. 2. Use a plastic screw driver to pry loose the side of the middle cover.

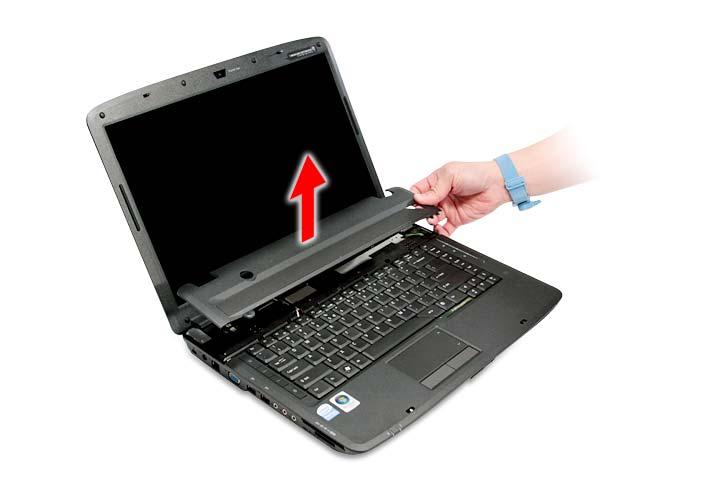

3. Carefully pry loose the middle cover from the latches securing it and remove the middle cover.
