Replacing the Keyboard
1. Connect the Keyboard FFC to the Mainboard and close the locking latch to secure the cable in place.

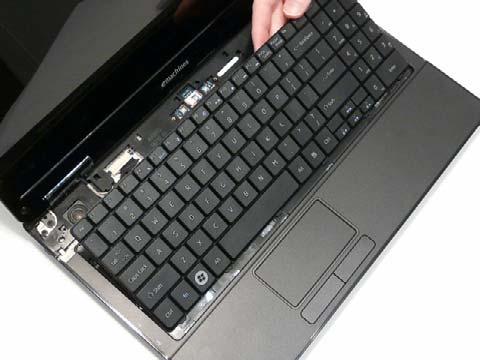

2. Turn the Keyboard over and insert it front edge first into the chassis.

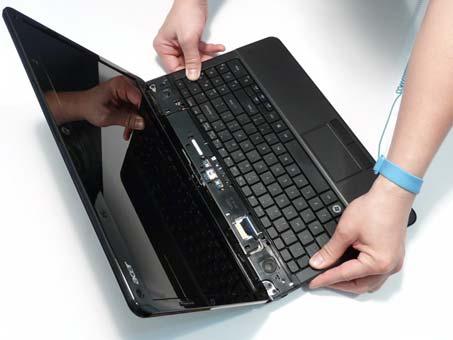

NOTE: Ensure that the six (6) locating tabs are correctly seated. 3. Press down as indicated to secure the Keyboard in place.
