Replacing the LCD Panel

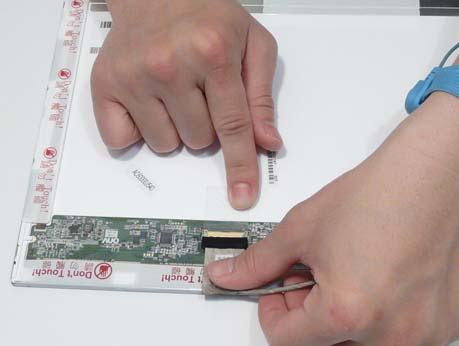

1. Connect the LCD cable to the panel connector as shown.

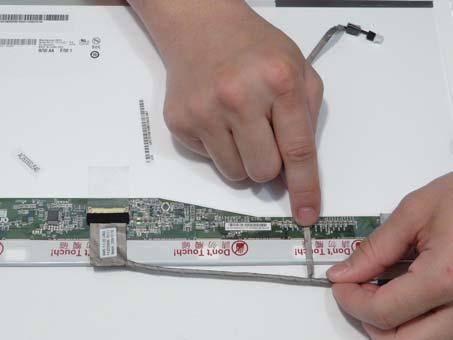

3. Run the cable along the back of the panel and press down as indicated to secure the cable in place. 2. Press down the adhesive strip to secure the cable in place.

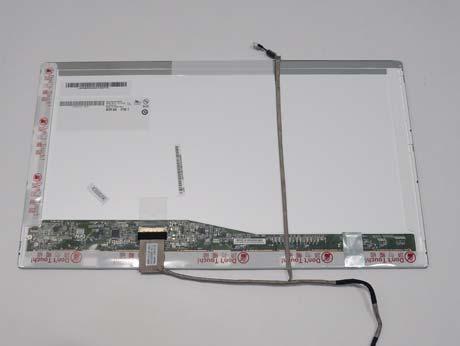

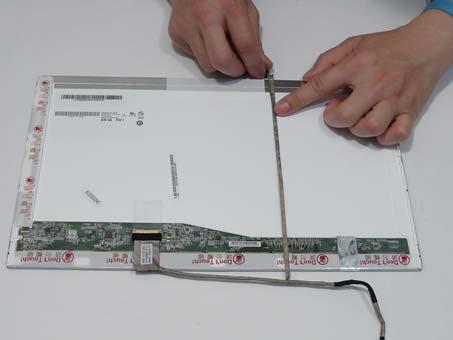

4. Run the cable across the back of the panel as shown and press down as indicated to secure the cable in place.

IMPORTANT: Ensure that the LCD cable runs between the green callouts to avoid trapping when the panel is replaced in the LCD Module.

5. Align the LCD brackets with the screw holes on the panel. Replace the six (6) screws (three on each side) in the brackets as shown.

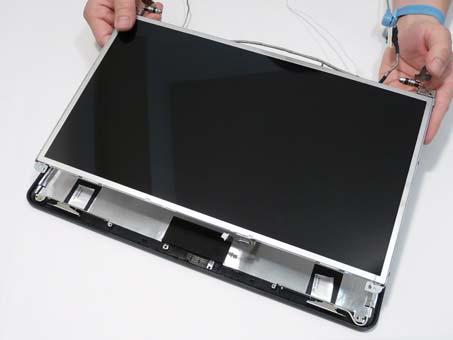

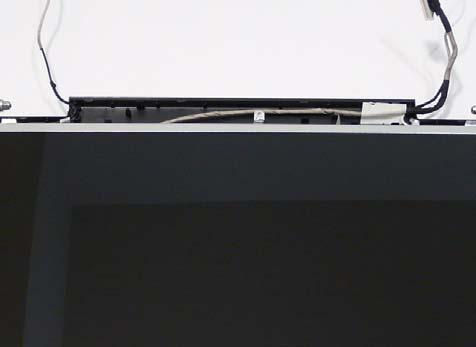

6. Place the LCD Panel in the LCD Module, top edge first, and secure the LCD cable with adhesive tape. IMPORTANT: Ensure that the LCD power cable passes through the hinge well and is not trapped under the panel.
