Removing the LCD Panel

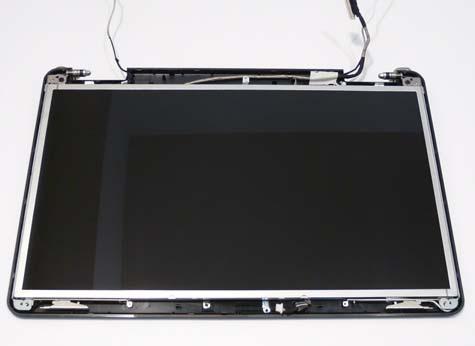

1. See “Removing the Camera Module” on page 79. 2. Remove the two (2) securing screws from the LCD Panel.

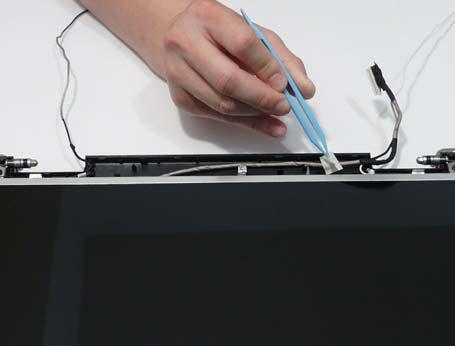

3. Remove the adhesive strip holding the cables in place.

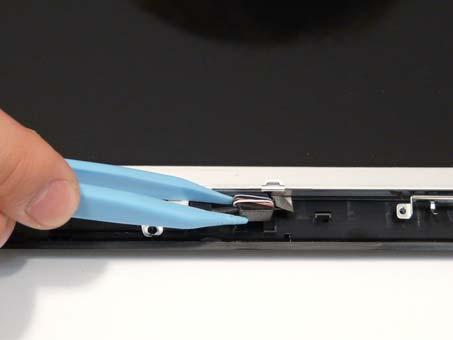

4. Remove the Camera cable cluster from the LCD Module as shown.

Step

Size

LCD Panel M2.5*6 2

Quantity Screw Type
