Removing the LCD Brackets and FPC Cable

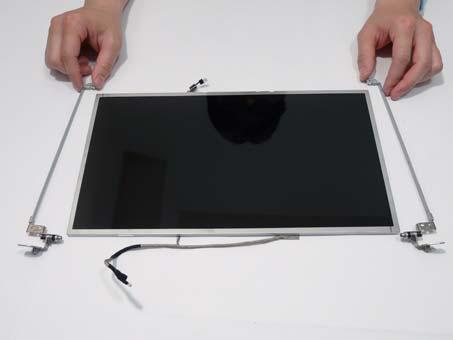

1. See “Removing the LCD Panel” on page 80. 2. Remove the six (6) securing screws (three on each side) from the LCD Panel brackets.

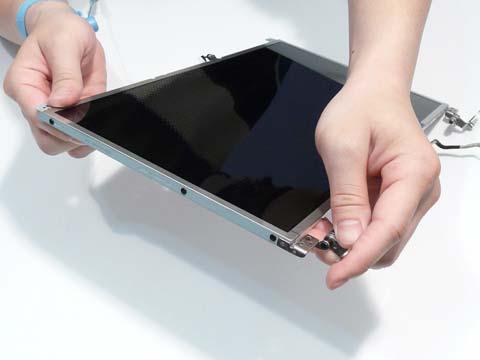

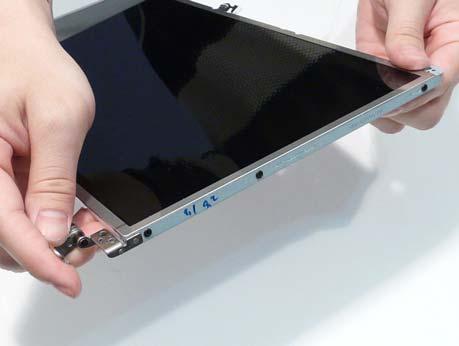

3. Remove the LCD brackets by pulling away from the LCD Panel.

Step Size Quantity Screw Type

LCD Brackets M2*3 6

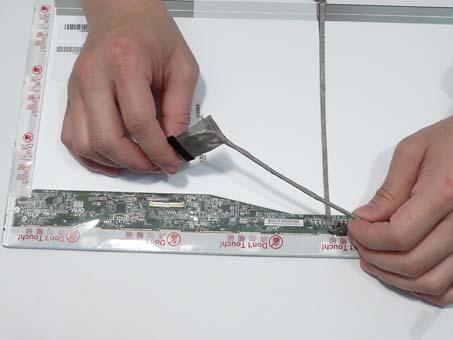

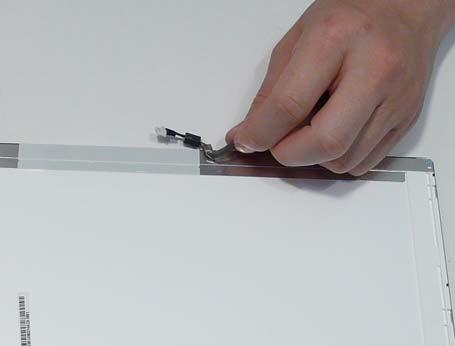

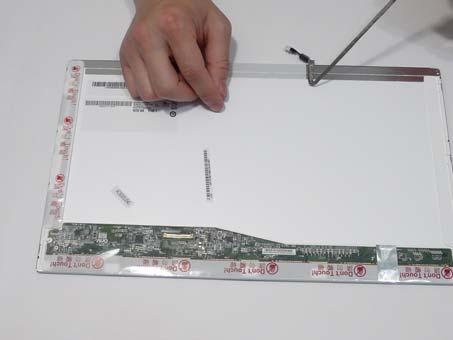

5. Lift the cable as shown to disengage the adhesive strip securing it in place.

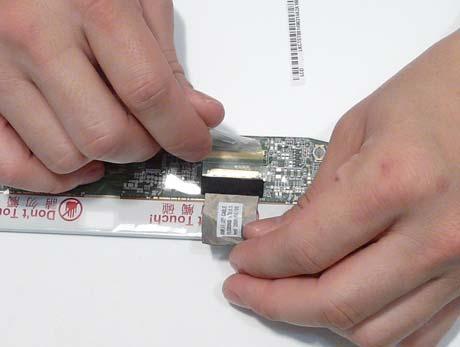

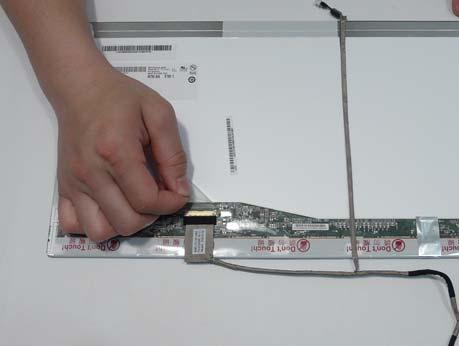

6. Lift the FPC cable to disengage the remaining adhesive and remove the cable from the panel.
