Removing the Left Speaker Module

1. See “Removing the Upper Cover” on page 59. 2. Locate the Left Speaker Module on the Upper Cover as shown.

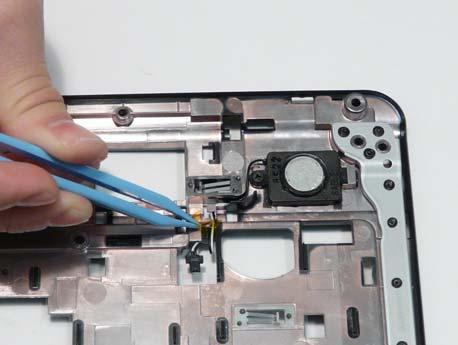

3. Remove the adhesive tape from the Speaker cable.

4. Remove the Speaker cable from the cable channel. Ensure that the cable is free from all cable clips.

Step

Left Speaker Module

Size

M2*3 1

Quantity Screw Type

6. Lift the Speaker clear of the Upper Cover, left side first as shown.
