Removing the LCD Module

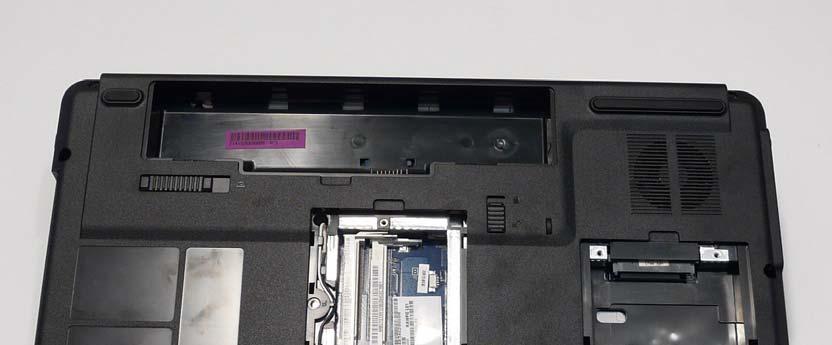

1. See “Removing the Keyboard” on page 54. 2. Turn the computer over. Remove the two (2) securing screws from the bottom of the chassis.

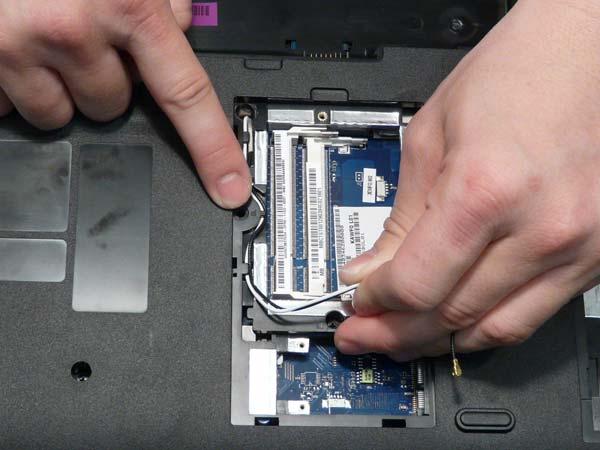

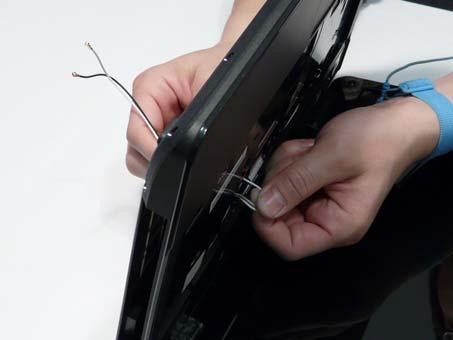

3. Remove the Antenna Cables from the cable channel as shown. Ensure that the cables are free from all cable clips.

Step Size

LCD Module M2.5*8 2

Quantity Screw Type

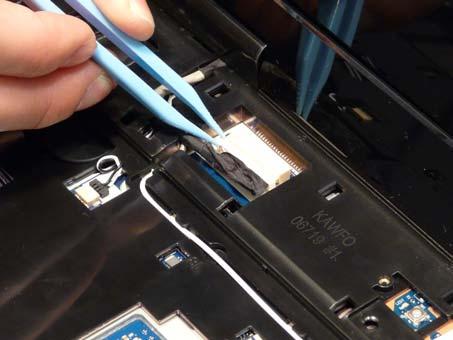

5. Disconnect the LCD cable from the Mainboard and remove the cable from the cable channel.

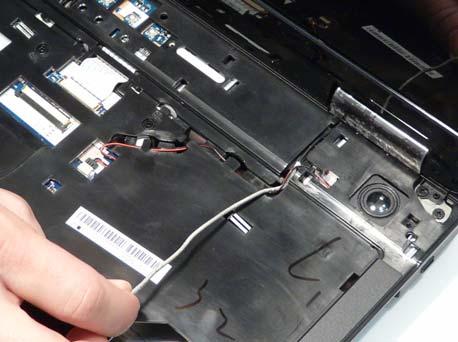

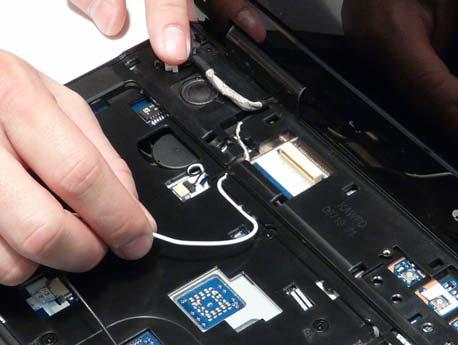

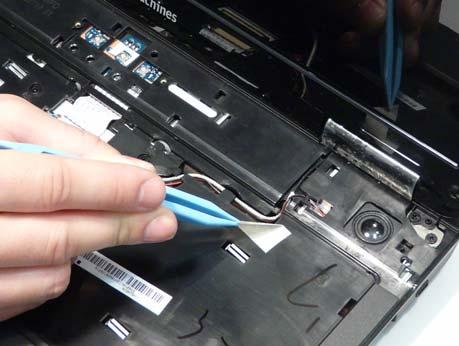

6. Remove the white Antenna cable from the cable channel. Ensure that the cable is completely free of the retaining clips all the way to the hinge well.

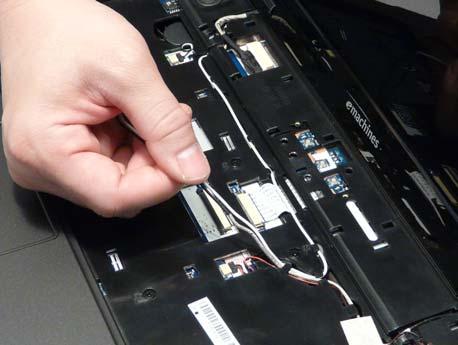

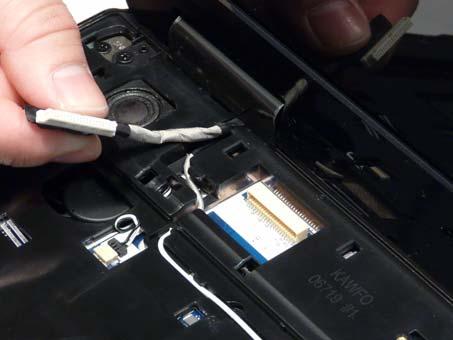

8. Remove the black Antenna cable from the cable channel as shown. Ensure that the cable is completely free of the retaining clips all the way to the hinge well.

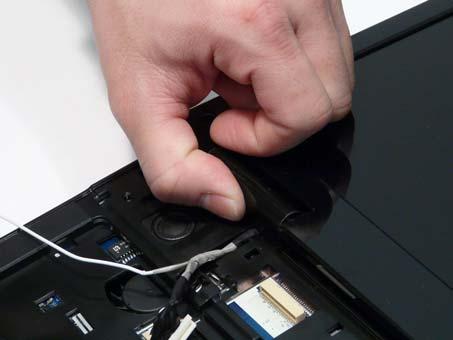

9. Open the LCD Panel to the full extent to expose the Hinge Covers. 10. Press the left side Hinge Cover inward, as shown, and lift to remove the cover from the chassis.

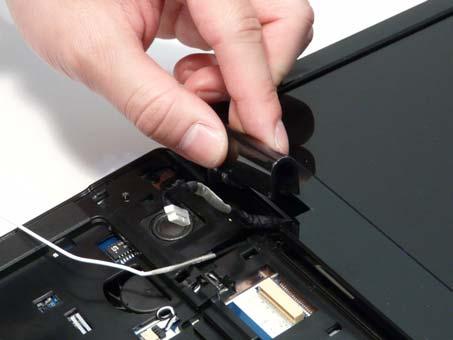

11. Repeat the process for the right side Hinge Cover.

Step

Size

LCD Module M2.5*8 4

Quantity Screw Type

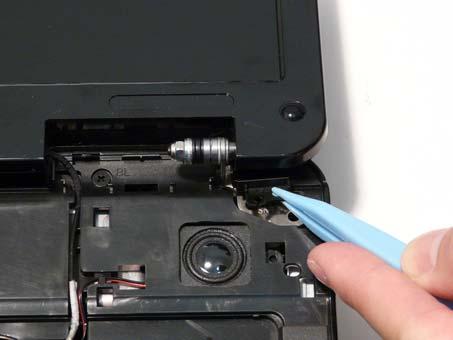

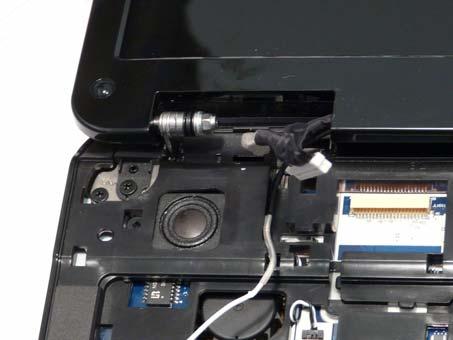

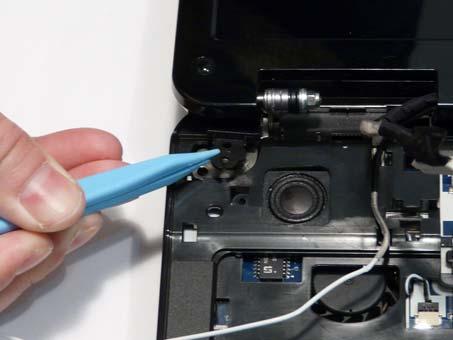

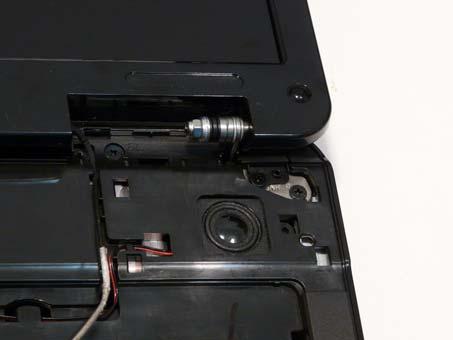

13. Remove the left and right screw covers from on top of the hinges

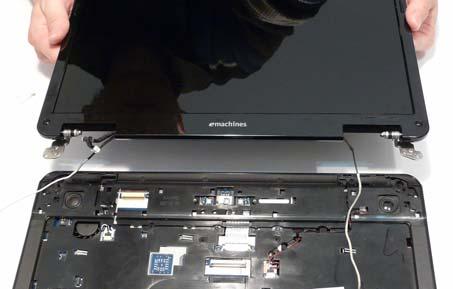

14. Lift the LCD Module clear of the Upper Cover.
