Removing the LCD Bezel

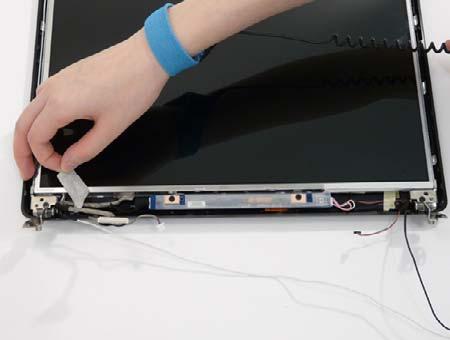

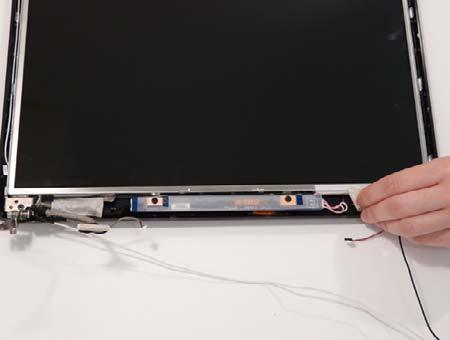

1. See “Removing the Battery Pack” on page 48. 2. See “Removing the LCD Module” on page 68. 3. See “Removing the LCD Bezel” on page 98. 4. Remove the securing tapes from the left and right sides of the Inverter board as shown.

5. Remove the two securing screws from the Inverter board and lift the board clear of the LCD Module.

Step

Size

Inverter Board M2.5*6 (NL) 2

Quantity Screw Type
