Removing the LCD Brackets and FPC Cable

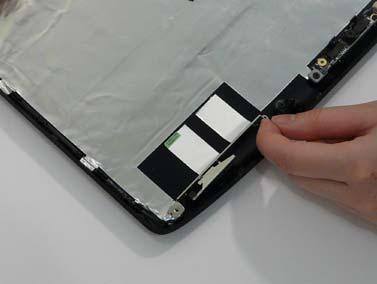

1. See “Removing the Battery Pack” on page 48. 2. See “Removing the Lower Covers” on page 51. 3. See “Removing the WLAN Module” on page 54. 4. See “Removing the LCD Panel” on page 103. 5. Remove the strips holding the antenna cables in place. Ensure the cables are free from obstructions.

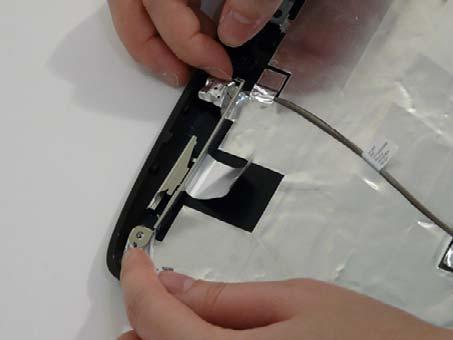

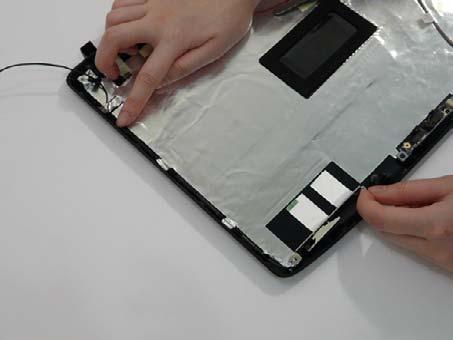

6. Remove the tabs securing the left and right antennas to the LCD module.

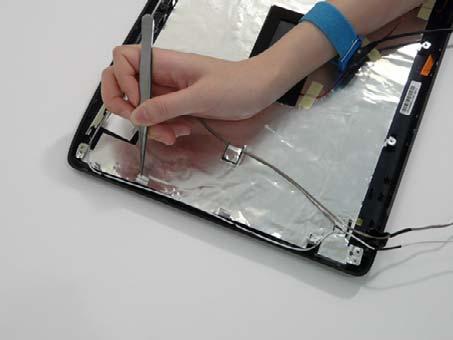

7. Remove the antenna cables and assembly from the LCD module.
