Removing the CPU

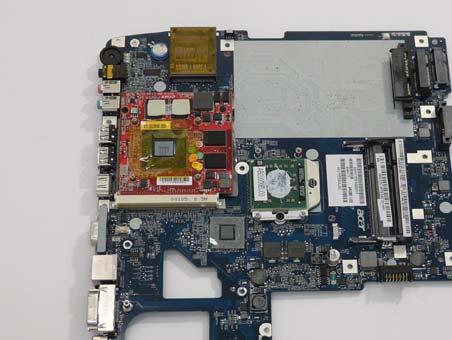

1. See “Removing the Battery Pack” on page 48. 2. See “Removing the Upper Cover” on page 70. 3. See “Removing the Main Board” on page 90. 4. Remove the two securing screws from the VGA Module.

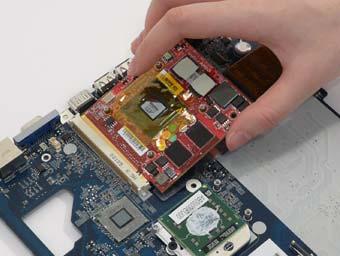

5. The VGA module lifts automatically from the mainboard. Remove the VGA Module as shown.

Step

Size

VGA Module M2*4-NI (NL) 2

Quantity Screw Type
