Removing the Subwoofer Module

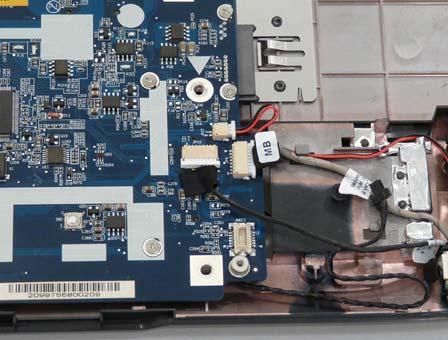

1. See “Removing the Battery Pack” on page 48. 2. See “Removing the Keyboard” on page 65. 3. See “Removing the LCD Module” on page 68. 4. See “Removing the Upper Cover” on page 70. 5. Disconnect the three cables from the bottom right of the mainboard as shown.

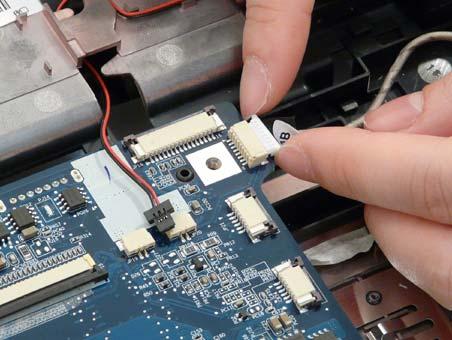

6. Disconnect the two cables from the top right of the mainboard as shown.
