Removing the Touch Pad Bracket

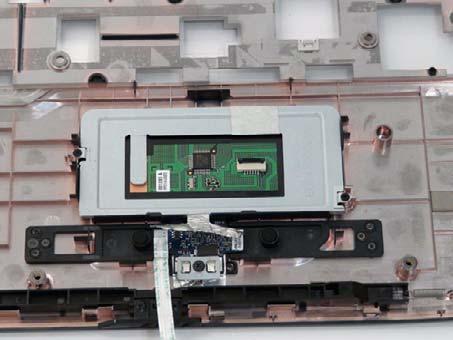

4. Remove the two securing screws from the Touch Pad bracket.

Step

Size

Touch Pad Bracket M2*3 (NL) 2

Quantity Screw Type

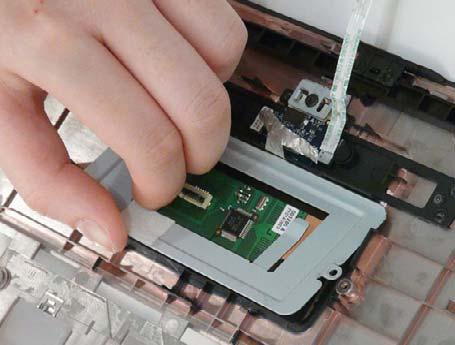

5. Remove the Touch Pad bracket.

IMPORTANT:The Touch Pad cannot be removed individually. To replace the Touch Pad, replace the entire Upper Cover.

1. See “Removing the Upper Left Saddle” on page 77. 2. Grasp the Launch Board and lift up to remove from the Upper Cover.

Removing the Media Board

1. See “Removing the Upper Left Saddle” on page 77. 2. Pull the FFC out of the chassis.

3. Insert the FFC flush with the connector and press the locking lever down to secure.

4. Use a pry to lift the Media board out of the Upper Cover.
