Removing the Upper Left Saddle

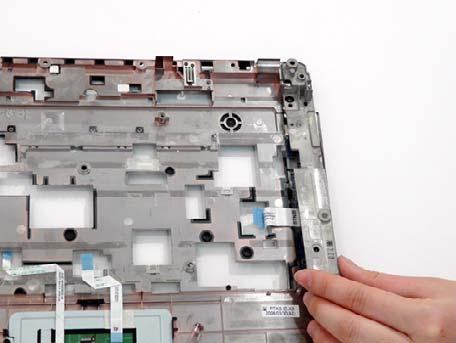

1. See “Removing the Upper Cover” on page 70. 2. Pull back the mylar cover to expose the top securing screw.

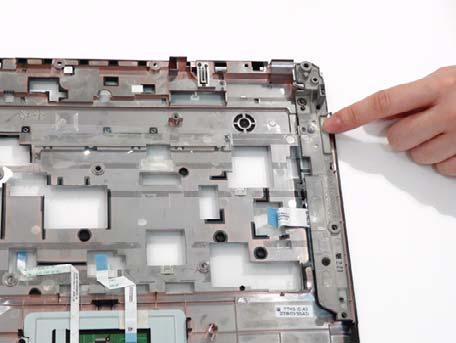

3. Remove the bottom securing screw. 4. While holding the cover back, remove the top securing screw.

Step

Left Speaker Module

Size

M2.5*4 (NL) 2

Quantity Screw Type

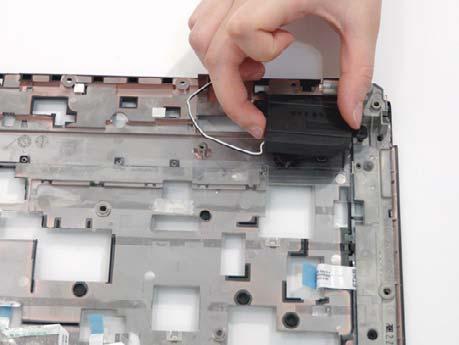

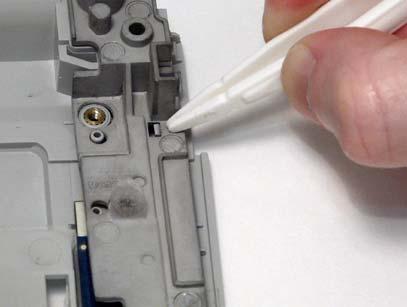

5. Firmly lift and rotate the saddle counter-clockwise to remove, paying attention to the securing clip.

Removing the Touch Pad Bracket

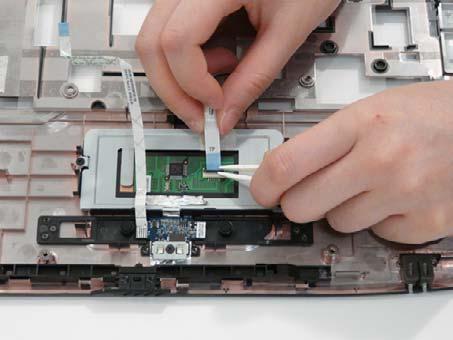

1. See “Removing the Upper Cover” on page 70. 2. Disconnect the Touch Pad FFC from the Touch Pad board.

3. Move the Finger Print Reader FFC cable out of the way to prevent damage, and pull back the securing foil on the bracket.
