Removing the LCD Module

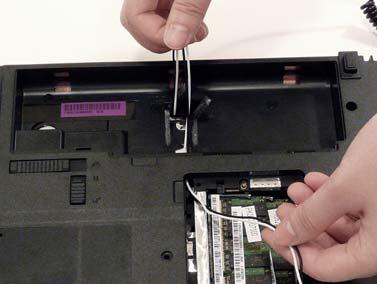

4. Using one hand, pull the cables completely through the battery housing.

NOTE: Do not remove the adhesive tape.

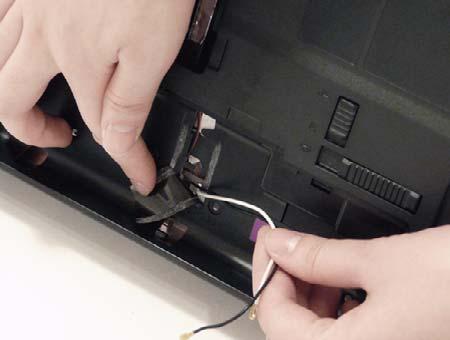

5. Push the cables through the chassis, then turn over the computer and pull them completely through.

1. Remove the Antenna. Remove the Antenna. See “Removing the Antenna” on page 66. 2. Remove the two securing screws from the bottom of the chassis.

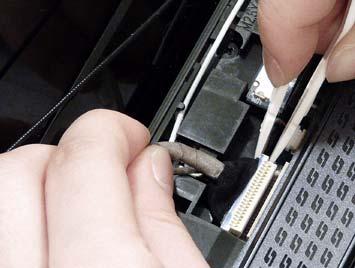

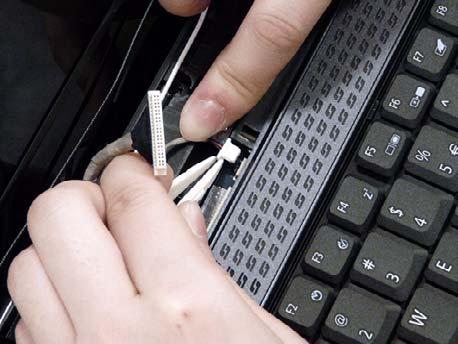

3. Turn the computer over. Disconnect the LCD, MIC and back light cables from the top panel.

LCD Module M2.5*8(NL) 2

LCD cable MIC cable

Back light cable
