Removing the Antenna

1. See “Removing the Battery Pack” on page 48.. 2. Push down on the two latches securing the keyboard to the upper case.

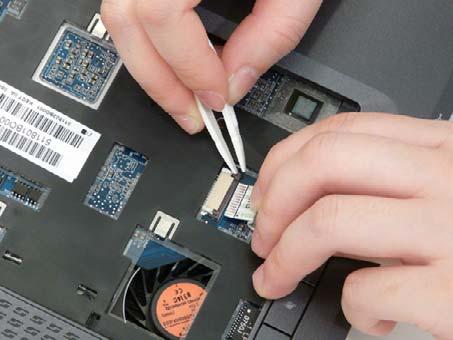

3. Turn the keyboard over and pull back the securing latch to release the FFC.

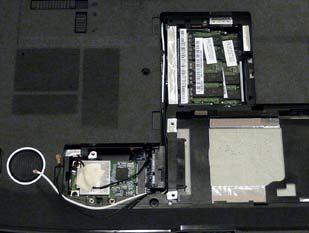

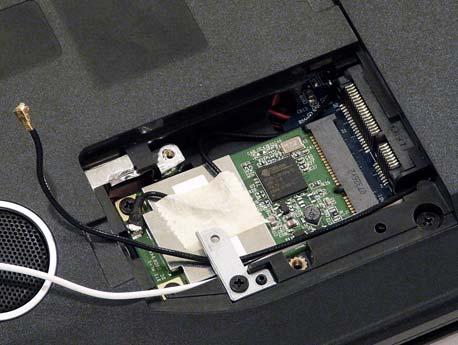

WARNING:Do not attempt to pull the antenna cables under the WLAN bracket to prevent stripping of the cable. 1. See “Removing the WLAN Module” on page 54. 2. Remove the securing screw, located on the WLAN bracket, and remove the bracket.

NOTE: Move the antenna cables out of the way to allow for easier access.

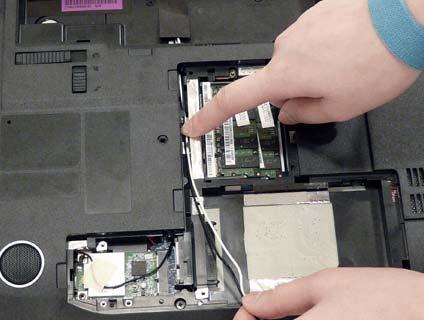

3. Remove the Antenna Cables from the securing guides as shown.
