Removing the Keyboard

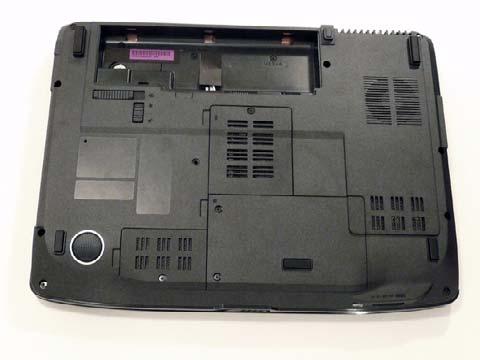

CAUTION: Using tools to remove the Switch Cover may cause damage to the outer casing. It is recommended that only fingers are used to remove the Switch Cover. 1. See “Removing the Battery Pack” on page 48. 2. Locate and remove the three securing screws as shown.

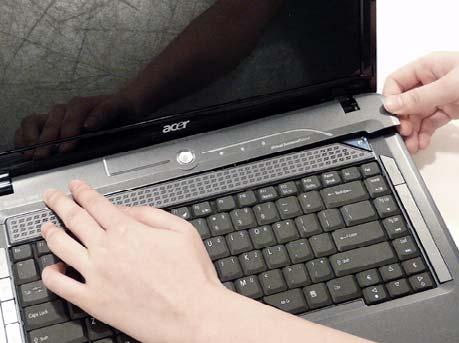

3. Turn the computer over and open the LCD module fully to expose the Switch Cover. 4. Lift the Switch Cover as shown, leftside first.

5. Lift the Switch Cover clear of the chassis.

Step

Size

Switch Cover M2*3(NL) 3

Quantity Screw Type
