Replacing the Function Board

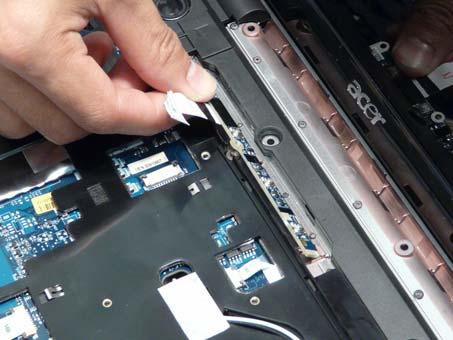

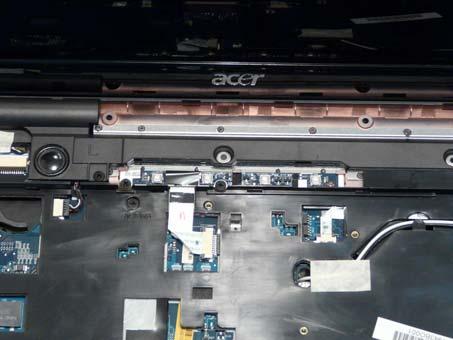

1. Insert the Function Board, rear edge first, into the casing. 2. Rotate the board downward and apply pressure, ensuring that the locating pins are correctly seated.

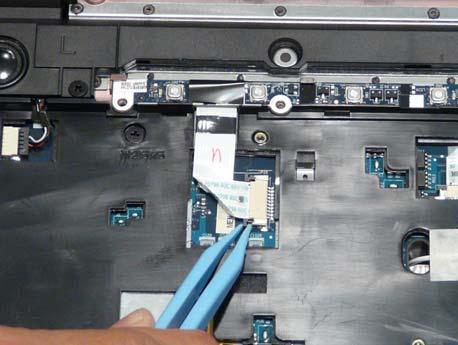

3. Reconnect the FFC cable and close the locking latch. 4. Replace the two securing screws.
