Replacing the Speaker Module

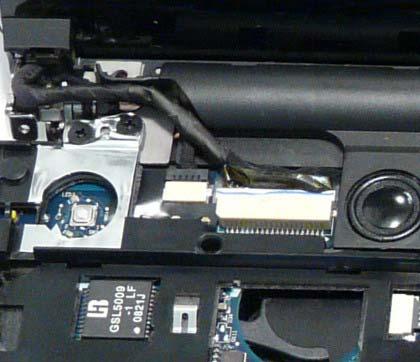

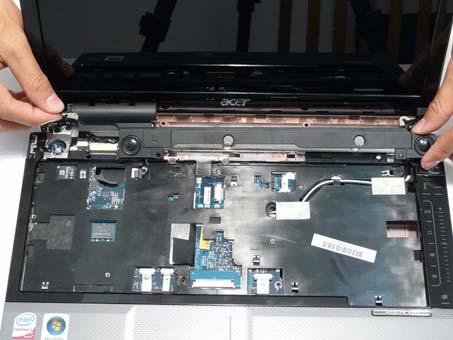

1. Align and replace the Speaker Module in the lower case. IMPORTANT: Run the LCD cables over the Speaker Module as shown to avoid trapping when the Switch Cover is replaced.

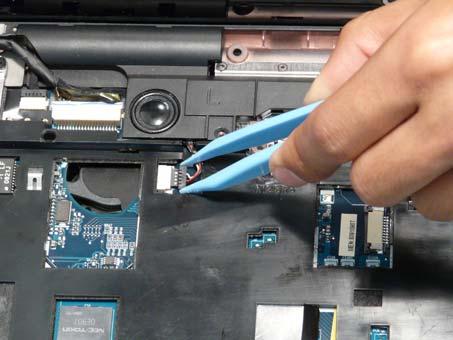

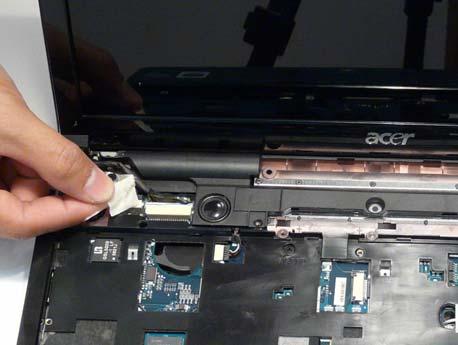

2. Reconnect the Speaker cable. 3. Replace the adhesive tape to secure the LCD cables in place.

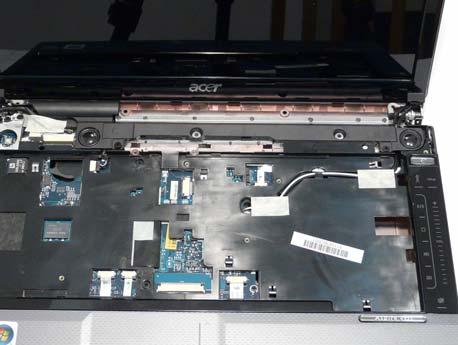

4. Replace the two securing screws as shown.
