Removing the Camera Module

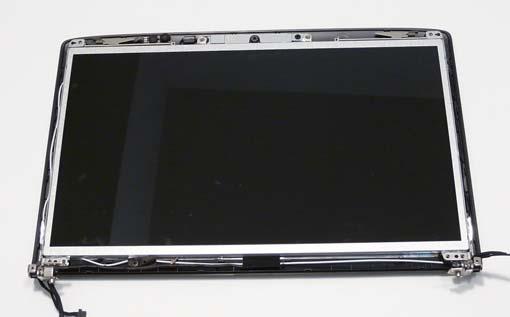

1. See “Removing the LCD Bezel” on page 101. 2. Remove the single screw from the Camera Bracket as shown.

3. Lift the Camera Bracket, right side first, clear of the casing.

4. Lift the Camera Module clear of the casing and disconnect the cable from the Module.

5. Remove the Camera Module.

Step

Size

Camera Module M2.5*3 1

Quantity Screw Type
