Removing the LCD Bezel

1. See “Removing the LCD Module” on page 74. 2. Remove the six screw caps and screws as shown.

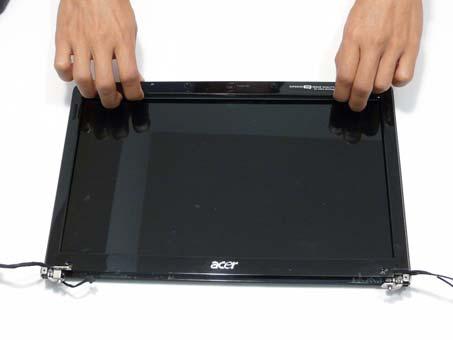

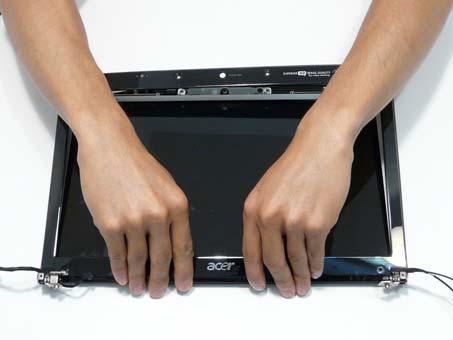

3. Starting at the centre of the top edge, pry the inside of the bezel away from the screen. Work round the edges to pry the bezel away from the screen as shown.

Step

Size

LCD Bezel M2.5*5 6

Quantity Screw Type
