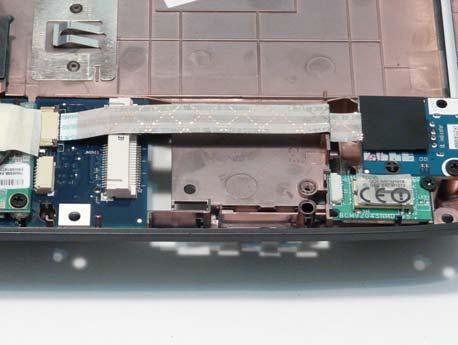

Removing the Bluetooth Module

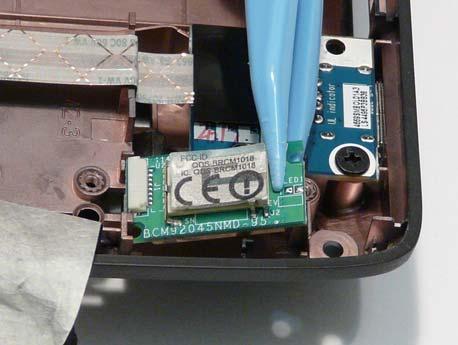

1. See “Removing the Upper Base” on page 79. 2. Grasp the cable as shown and pull to disconnect from the Bluetooth module.

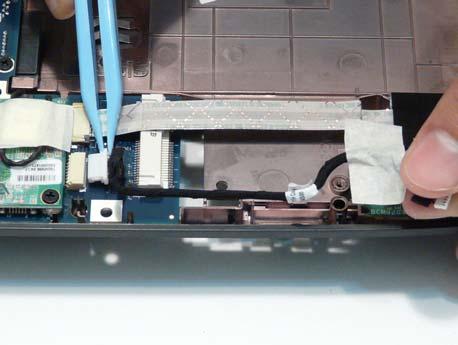

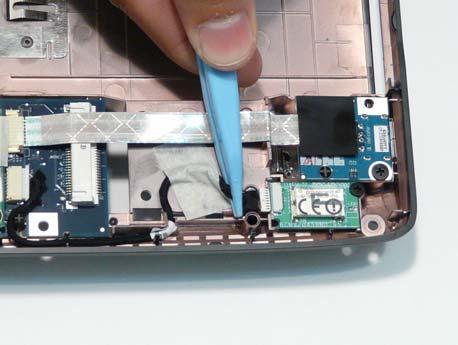

3. Disconnect the cable from the Mainboard and remove the adhesive tape to free the cable.

4. Remove the single securing screw and remove the module from the chassis.

Step

Size

Bluetooth Module M2.5*3 1

Quantity Screw Type
