Removing the Switch Cover

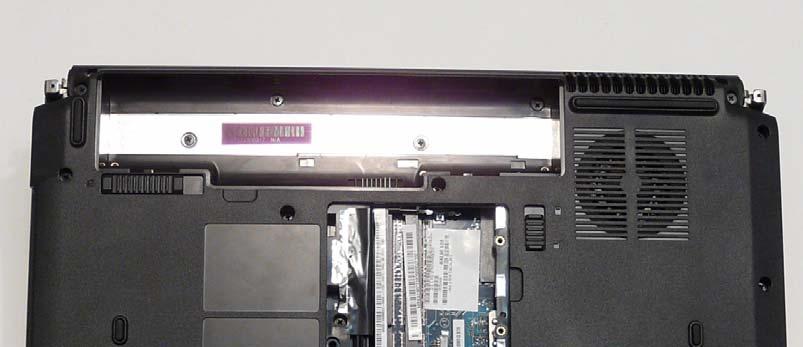

CAUTION: Using tools to remove the Switch Cover may cause damage to the outer casing. It is recommended that only fingers are used to remove the Switch Cover. 1. See “Removing the Battery Pack” on page 54. 2. See “Removing the Hinge Covers” on page 67. 3. Locate and remove the ten securing screws on the bottom of the computer.

4. Turn the computer over and open the LCD module to expose the Switch Cover.

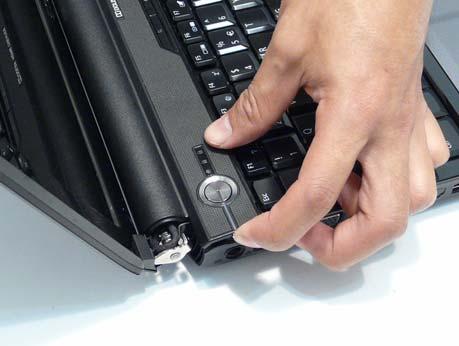

IMPORTANT:The LCD module does not fully extend. Damage will occur if you attempt to extend the LCD module beyond the manufacturer’s design. 5. Push the Switch Cover downward (1) and lift the leftside of the cover upward (2) to release the securing pins.

Step

Switch Cover (red callout)

Size

M2.5*3 4

Quantity Screw Type

Switch Cover (green callout) M2.5*10 2

1

2

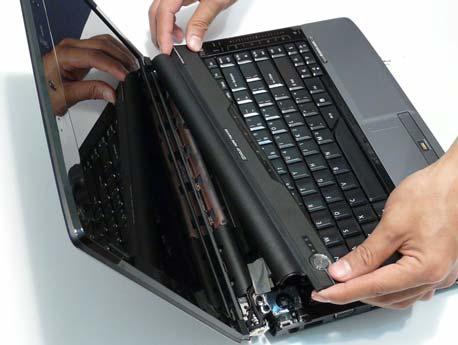

7. Lift the left side of the Switch Cover first and gently rotate it while lifting the right side clear of the casing.

8. Lift the Switch Cover clear of the chassis.
