Removing the Media Board

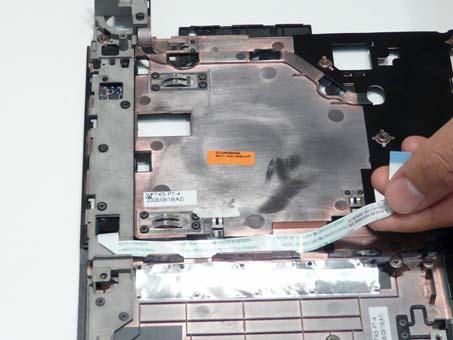

WARNING:Care must be taken when removing the Media Board Cover from the Upper Base to prevent damage or stress to the surface. 1. See “Removing the Upper Base” on page 79. 2. Lift up the FFC to detach the adhesive.

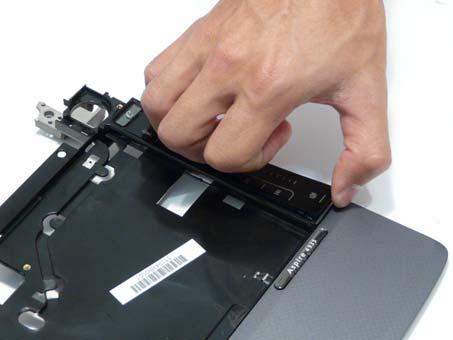

3. Turn the Upper Base over. Pry the bottom edge of the Media Board Cover up and remove it from the Upper

Base.

NOTE: The use of a plastic pry may aid cover removal.

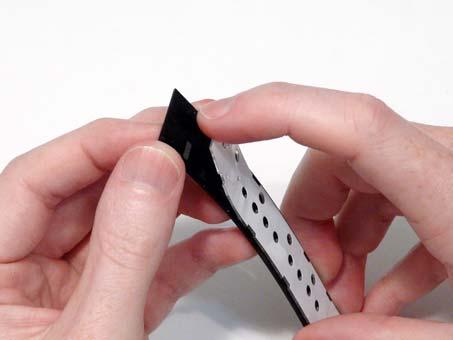

4. Gently remove the Backlight Panel from the Media Board Cover as shown.

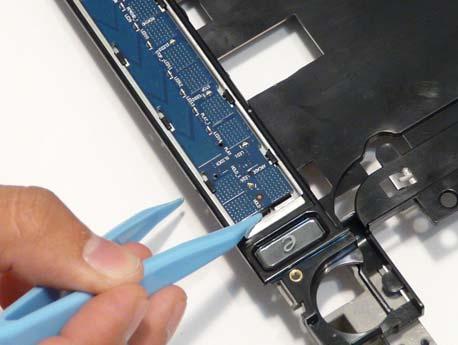

5. Using a plastic tool, press down the pin securing the Media Board in place and slide the Media Board in the direction of the arrow to release the locking pins.

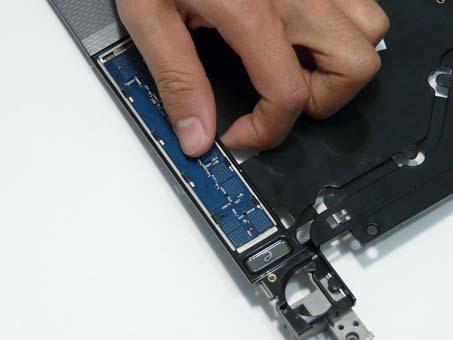

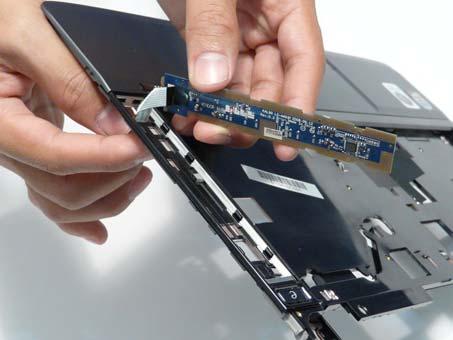

6. Lift the Media Board from the Upper Base and feed the FFC through the casing to remove the Media Board.
