Removing the Switch Cover

CAUTION: Using tools to remove the Switch Cover may cause damage to the outer casing. It is recommended that only fingers are used to remove the Switch Cover. 1. See “Removing the Battery Pack” on page 60. 2. Locate and remove the two securing screws as shown.

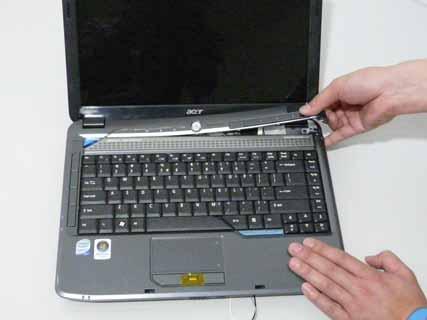

3. Turn the computer over and open the LCD module fully to expose the Switch Cover. 4. Lift the Switch Cover as shown, leftside first.

Step Size (Quantity) Color

2 M2.5 x 5 (2) Black

Torque

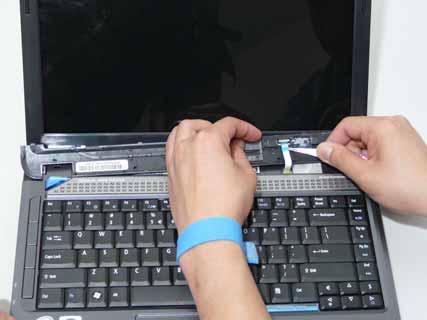

6. Lift the Switch Cover clear of the chassis.
