Removing the Lower Covers

1. See “Removing the Battery Pack” on page 60. 2. See “Removing the SD dummy card” on page 61. 3. See “Removing the ExpressCard dummy card” on page 62. 4. Remove the five screws from the memory, HDD, and WLAN bays.

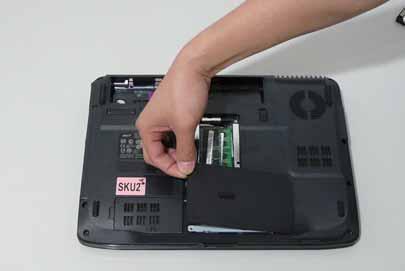

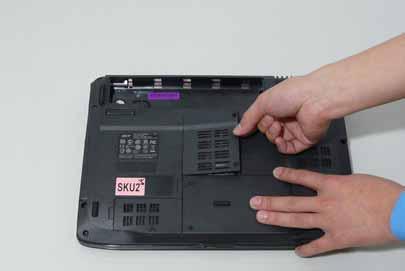

5. Carefully open the memory cover.

Step Size (Quantity) Color Torque

Memory Cover M2.5*8 NL (2) Black HDD Cover M2*6 NL (2) Black WLAN Cover M2.5*8 NL (1) Black

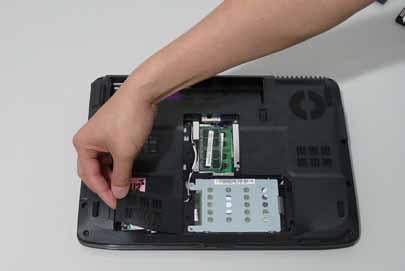

7. Remove the WLAN cover as shown.
