Replacing the Keyboard

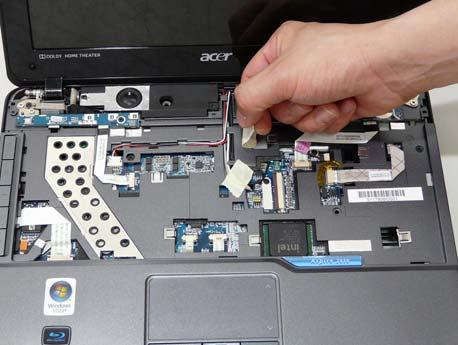

3. Replace the adhesive strip to secure the cabling. 4. Replace the four securing screws.

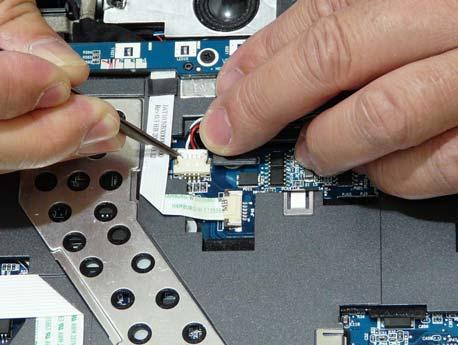

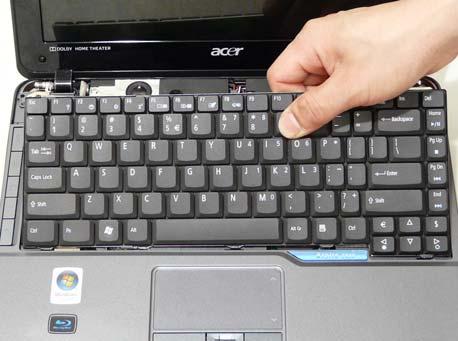

1. Replace keyboard cable to the mainboard, and secure the locking latch. 2.Turn the keyboard over and insert the bottom under the well guides on the upper cover.
