Removing the LCD Bezel

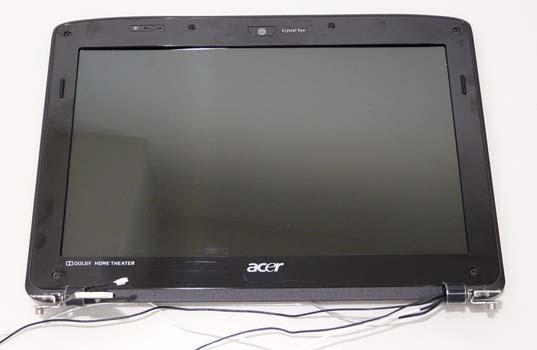

1. Remove the LCD Module. See “Removing the LCD Module” on page 66. 2. Remove the four rubber covers and screws.

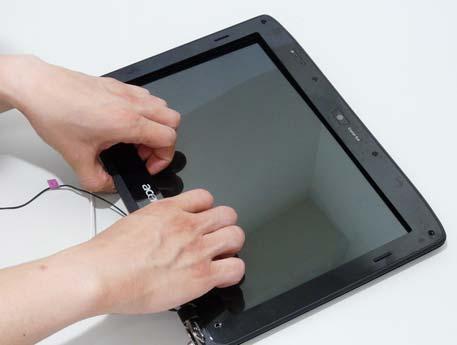

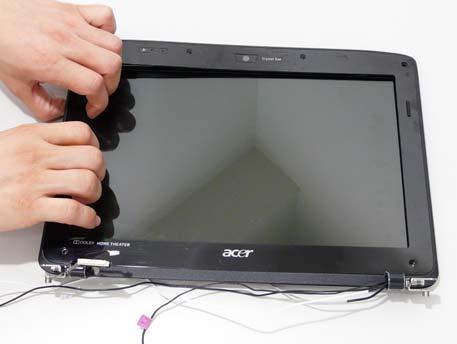

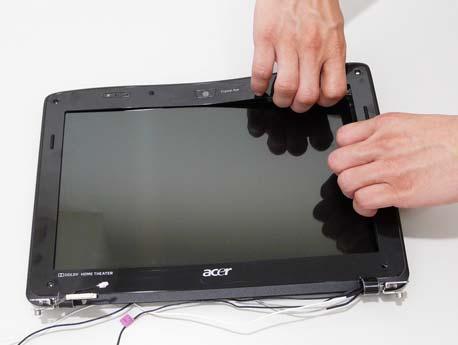

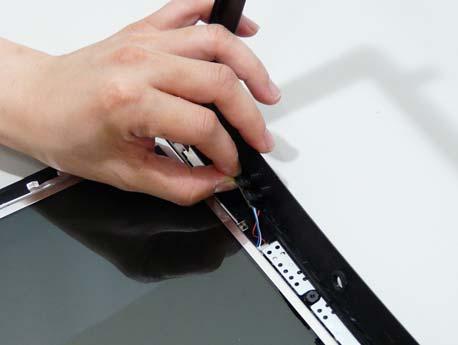

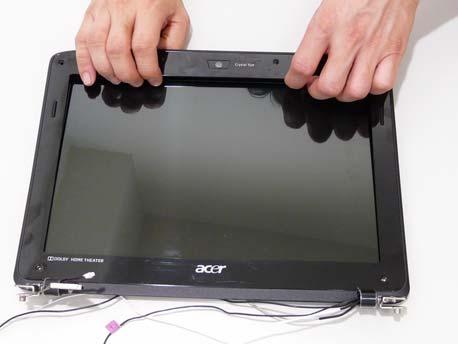

3. Starting from the inside edges, pry the inside of the bezel upwards from the panel. Continue moving left until the bezel is removed. If necessary, use a plastic pry to release the corners of the bezel.

Step

Size

LCD Bezel M2.5*5 4

Quantity Screw Type

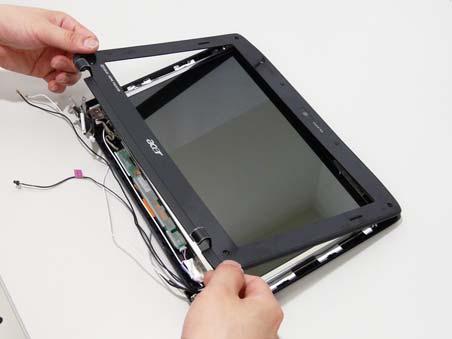

5. Remove the bezel from the LCD module.
