Removing the Camera Module

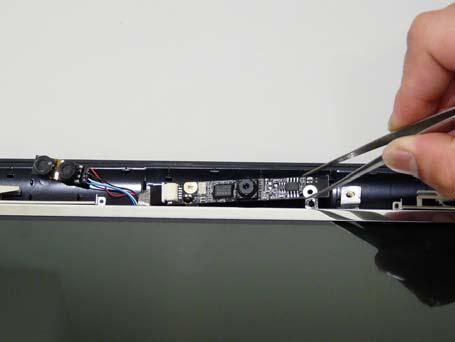

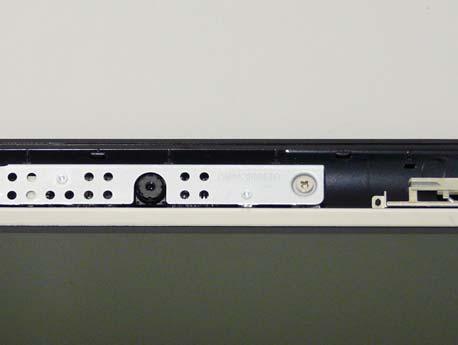

1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 88. 2. Remove the single securing screw.

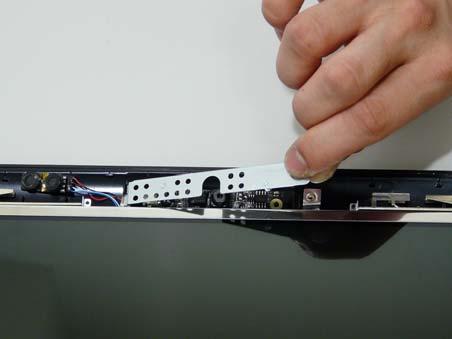

IMPORTANT:Be careful when using a sharp tool to remove the cable or camera module. The surface of the LCD panel can be easily scratched. 3. Remove the bracket from the back cover.

Step

Size

Camera Module M2.5*4 1

Quantity Screw Type

5. Hold the connector with one hand and pull the Camera Module to remove.
