Removing the RJ-11 Jack

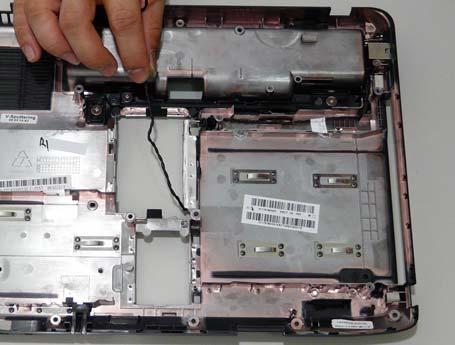

1. Remove the Mainboard. See “Removing the Mainboard” on page 80. 2. Locate the RJ-11 cable end and remove to the mylar cover.

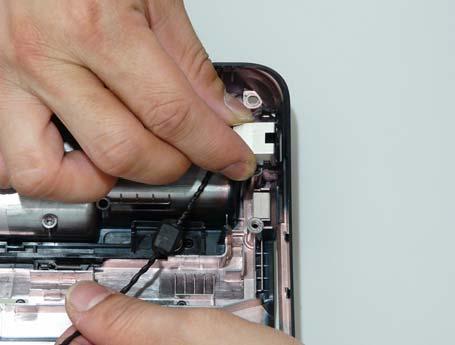

3. Remove the RJ-11 jack.

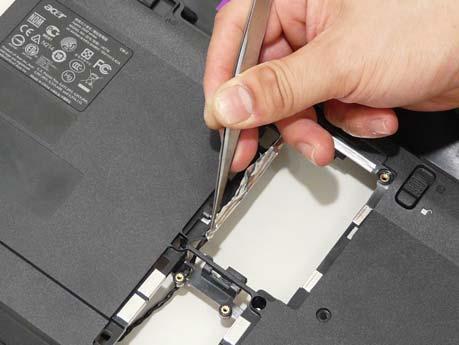

4. Turn the Lower Base over and pull back the mylar cover to release the cabling.
