Removing the Mainboard

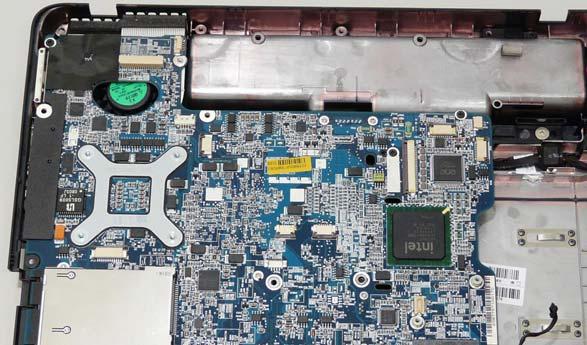

1. See “Removing the Upper Cover” on page 68. 2. Remove the Bluetooth Module. See “Removing the Bluetooth Module” on page 77. 3. Remove the three securing screws.

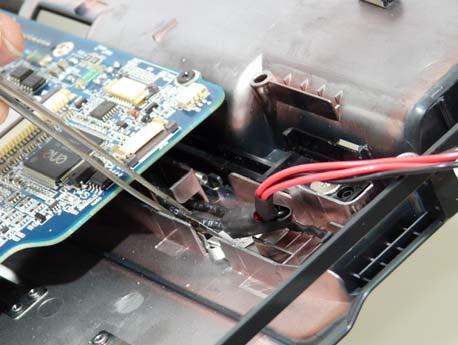

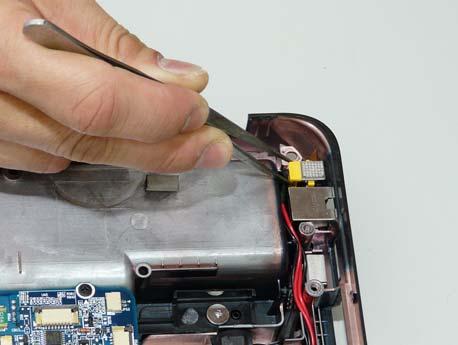

4. Remove the DC-IN jack from its socket.

Step

Size

Mainboard M2*3 3

Quantity Screw Type

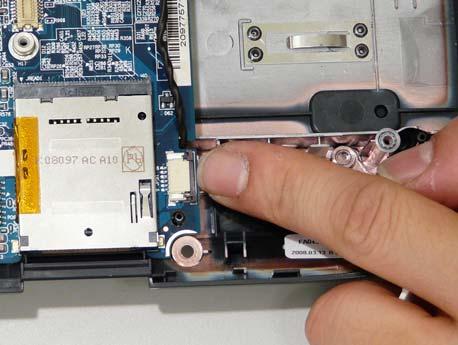

6. Ensure the modem cable is disconnected from the bottom of the mainboard as well.

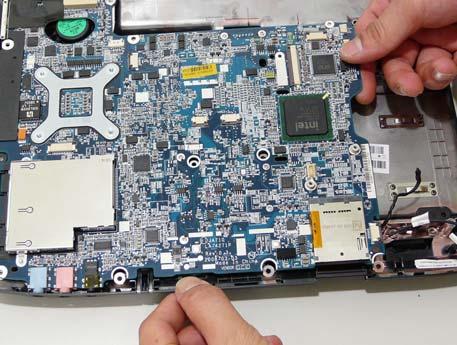

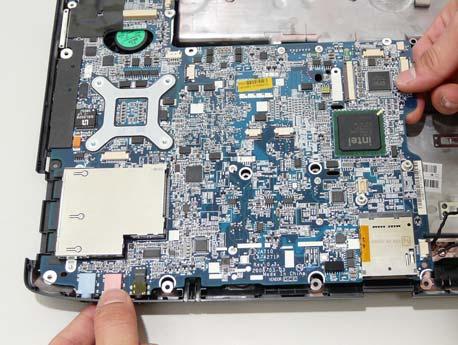

7. Pry the edge of the Lower Base outward then lift and pivot the Mainboard slightly upwards. Do not pull up completely.

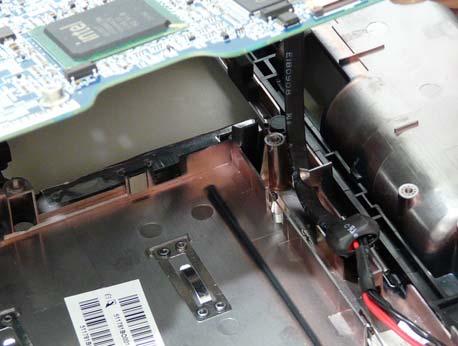

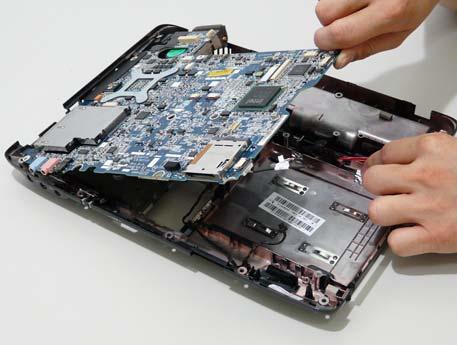

9. Once the bottom of the mainboard is clear of the lower case, continue lifting the mainboard. Take note of the

DC-IN cable.

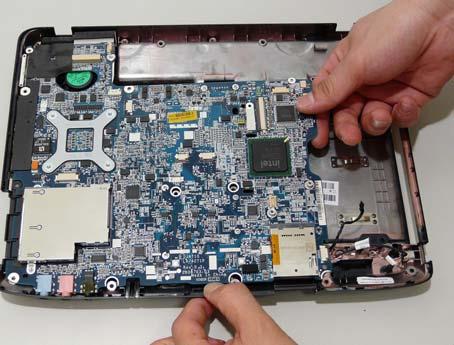

10. Remove the Mainboard from the lower base.
