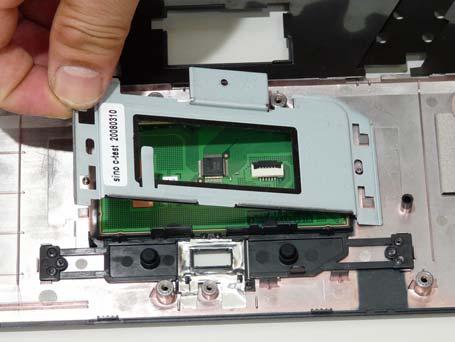

Removing the TouchPad Bracket

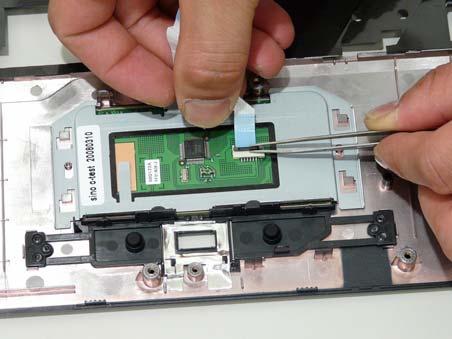

1. Remove the Upper Cover. See “Removing the Finger Print Reader” on page 71. 2. Lift up the locking lever (1) and remove the Touch Pad FFC from the Touch Pad board (2).

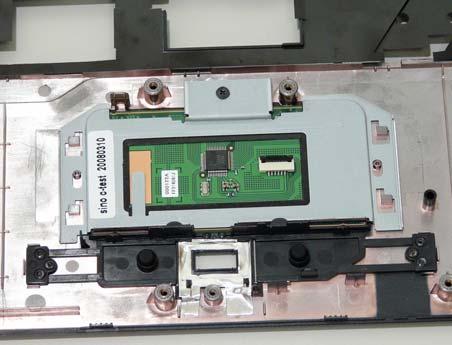

NOTE: To replace the Touch Pad, the entire Upper Cover must be replaced. 3. Remove the single securing screw. 1 2

Step

TouchPad Bracket

Size

M2*3 1

Quantity Screw Type
