Removing the Switch Cover

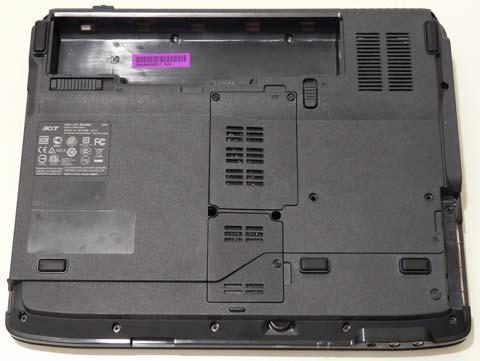

CAUTION: Using tools to remove the Switch Cover may cause damage to the outer casing. It is recommended that only fingers are used to remove the Switch Cover. 1. See “Removing the Battery Pack” on page 44. 2. Locate and remove the two securing screws as shown.

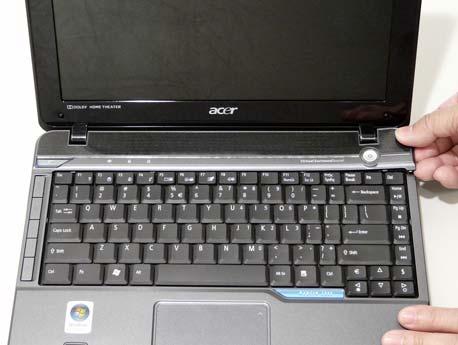

3. Turn the computer over and open the LCD module to expose the Switch Cover. 4. Pry the right corner up and partially lift up. Do not pull the Switch Cover completely off at this time.

IMPORTANT:Do not remove both sides of the Switch Cover together to prevent damage to the cover. Instead lift one end first and follow the instructions as directed.

Step

Size

Switch Cover M2.5*5 2

Quantity Screw Type

5. While holding the corner, firmly move the Switch Cover back (A) and forth (B) to release the locking catches (four in front and four in back) on the back and front of the Switch Cover.

A

B

6. Repeat the wiggling procedure until the Switch Cover is removed. 7. After the Switch Cover is unlocked, lift it clear of the chassis.
