Chpater 5 Jumper and Connector Locations

Jumper and Connector

Top View

Item Description JP1 RJ11/RJ45 Connector JP2 CRT Connector JP3 Printer Connector JP4 TV-Out Connector JP5/6/7 USB Connector JP8 IEEE 1394 Connector JP9 Power Board Connector JP10 MDC Cable Connector JP11 LCD Connector JP12 Cardbus Connector JP13 FAN Connector JP14 MDC Connector JP15 Right Speaker Connector JP16 Left Speaker Connnector JP17 Subwoofer Connector JP18 LCM Connector JP19 SD Board Connector JP20 Int. K/B Connector JP21 Bluetooth Connector JP22 DDR SODIMM Socket

Item

Description JP23 ODD Speaker JP24 T/P Board Connector JP25 HDD Connector PCN2 AC Jack PCN3 Battery Connector

Item Description JP27 Mini-PCI Connector JP29 DDR SODIMM Socket U40 BIOS ROM U45 Cardbus Controller

Top View

Rear View

Item Description SW5 Power Button SW2 User Button 1 SW3 User Button 1 SW4 Internet Bottom SW1 E-Mail Bottom JP1 To M/B Connector D1 Scroll Lock LED D2 Num Lock LED D3 Caps Lock LED D4 E-Mail LED

Top View

Rear View

Item Description Item Description

SW1 Scroll-Up Buttom SW7 Lid Switch SW2 Scroll-left Buttom JP1 To Touch Pad Cable

Item Description Item

Description SW3 Scroll-Right Buttom JP2 To Buttom Board Cable SW4 Scroll-Down Buttom JP3 To LED Board Cable SW5 Left Buttom JP4 To M/B Cable SW6 Right Buttom JP5 To Media Board Cable

Top View

Rear View

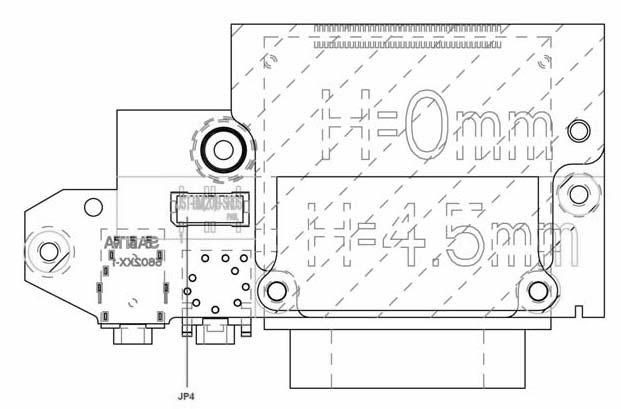

Item Description JP1 Card Reader Socket JP2 MIC-In/Line-In Jack JP3 SPDIF/Headphone-Out Jack JP4 To M/B wire connector

Top View

Rear View

Item Description

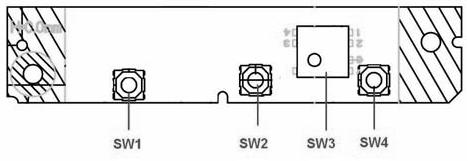

SW1 Stop Bottom SW2 Backward Bottom SW3 Media Control Bottom SW4 Forward Bottom JP1 To T/P Board Connector

Top View

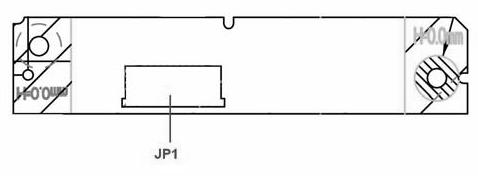

Rear View

Item Description SW1 Arcade Bottom JP1 To T/P Board Connector D1/D2 Power Status LED D3 Activity LED D4/D5 Battery Status LED MIC1 Internal Microphone

Top View

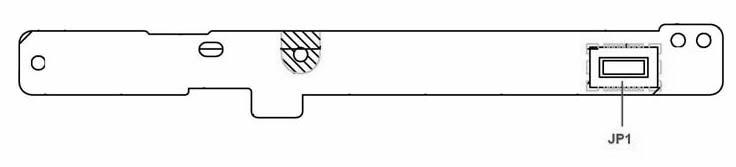

Rear View

Item Description SW1 Bluetooth On/Off Bottom SW2 Wireless On/Off Bottom JP1 To T/P Board Connector D1 Bluetooth Status LED D2 Wireless Status LED
