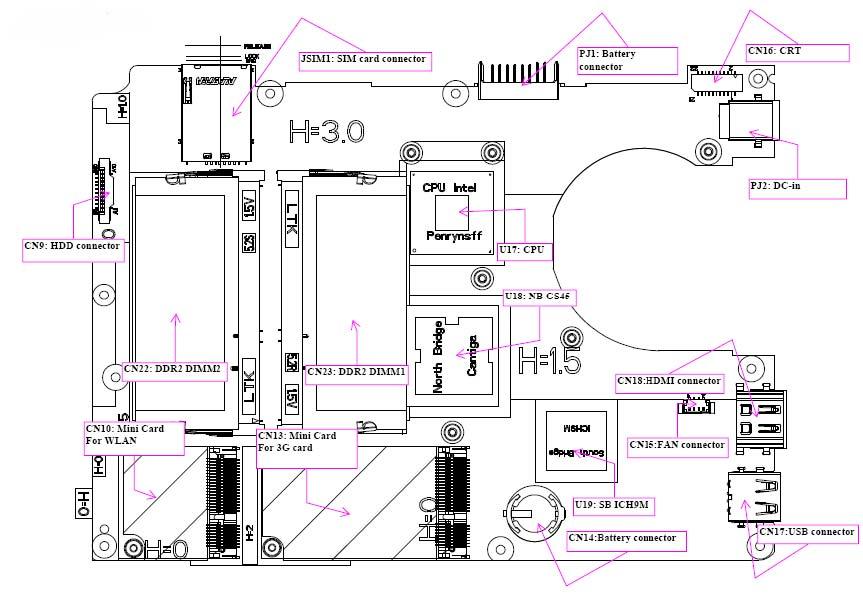

Mainboard Bottom View

Item Description Item Description

CN9 HDD connector CN17 USB connector JSIM1 SIM card connector CN14 RTC battery connector PJ1 Battery connector CN13 Mini card for 3G CN16 CRT CN10 Mini card for WLAN PJ2 DC-in CN22 DRR2 DIMM2 U17 CPU CN23 DDR2 DIMM1 U18 North Bridge GS45 U19 SB ICH9M CN18 HDMI connector CN15 Fan connector
