3.6 Indicator lights

3.6 Indicator lights

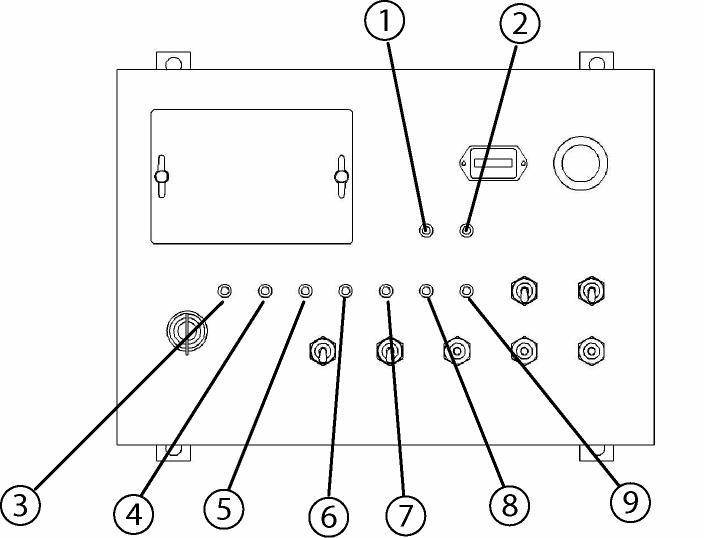

The following indicator lights are equipped on the lower control panel

1 System failure light 6 Water temperature light 2 Overload sensing light 7 Charge light 3 Pre-heat light 8 Air filter clog light 4 Fuel level light 9 Outreach limit light 5 Oil pressure light 10 ---------------------------

(1) System failure light

This light blinks, in the event of a computer control system failure.

Caution: Stop using the machine and contact Aichi service shop for inspections, if this light blinks. This light also blinks when the machine tilts excessively, but this is not a failure.

(2) Overload sensing light

When the platform is overloaded, this light blinks, the alarm buzzer sounds and all of the functions are disabled.

(3) Pre-heat light

This light goes on when the engine key switch is turned to the LOWER control or

PRE-HEAT position and goes off when the preheating is completed.

(4) Fuel level light

This light goes on when the fuel level is low. Refill with fuel, if this light goes on.

(5) Oil pressure light

After starting the engine, this light goes off. Check the engine lubrication system, e.g. shortage of engine oil, if this light goes on while the engine is in motion.

(6) Water temperature light

When the engine cooling water temperature rises abnormally, the engine stops and this light goes on to protect the engine from overheat. Check the engine cooling system, e.g. coolant level and fan belt, if this light goes on.
