Palm rest

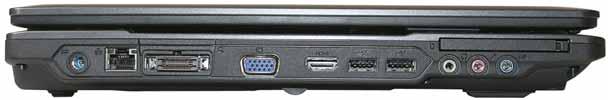

DC in jackEthernet port Acer EasyPort IV connector VGA port HDMI port

Headphone jack USB ports Microphone jack Line in jack PC Card slot

PC Card eject button

Item Icon Description DC in jack Connects to an AC adapter.

Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based network.

Acer EasyPort IV connector Connects to an Acer EasyPort IV. (Available on select models only.) External display (VGA) port Connects to a display device (such as an external monitor or LCD projector). HDMI port HDMI Connects to a high definition digital video device. (Available on select models only.) Two USB 2.0 ports Connects to USB 2.0 devices (such as a USB mouse, keyboard, printer, or camera). Headphones/speaker/line-out jack. Connects to audio line-out devices (such as speakers or headphones). Microphone jack Connects to an external microphone.

Line in jack Connects to an audio line in device (such as an audio CD player, stereo walkman, or mp3 player). PC Card slot Accepts one Type II PC Card.

PC Card slot eject button Ejects the PC Card from the slot.
