Features

Communication ❑ Acer Video Conference, featuring: ❑ Integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology ❑ Optional Acer Xpress VoIP phone ❑ WLAN: Intel® Wireless WiFi Link 5100/5300 (dual-band quad-mode 802.11a/b/g/ Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™2 wireless technology ❑ WPAN: Bluetooth® 2.0+EDR (Enhanced Data Rate) ❑ LAN: Gigabit Ethernet supporting ASF (Alert Standard Format) 2.0, Wake-on-LAN ready ❑ Modem: 56K ITU V.92 with PTT approval10, Wake-on-Ring ready

I/O Ports

❑ 68-pin Acer EasyPort IV connector ❑ ExpressCard™/54 slot ❑ PC Card slot (Type II) ❑ Acer Bio-Protection fingerprint reader1 ❑ 5-in-1 card reader (SD™, MMC, MS, MS PRO, xD) ❑ Four USB 2.0 ports ❑ HDMI™ port with HDCP support ❑ External display (VGA) port ❑ Headphone/speaker/line-out jack ❑ Microphone in jack ❑ Line in jack ❑ Ethernet (RJ-45) port ❑ Modem (RJ-11) port ❑ DC in jack for AC adapter

Environment ❑ Temperature: ❑ Operating: 41 °F to 95 °F (5 °C to 35 °C) ❑ Non-operating: -4 °F to -149 °F (20 °C to 65 °C) ❑ Humidity (non-condensing): ❑ Operating: 20% to 80% ❑ Non-operating: 20% to 80%

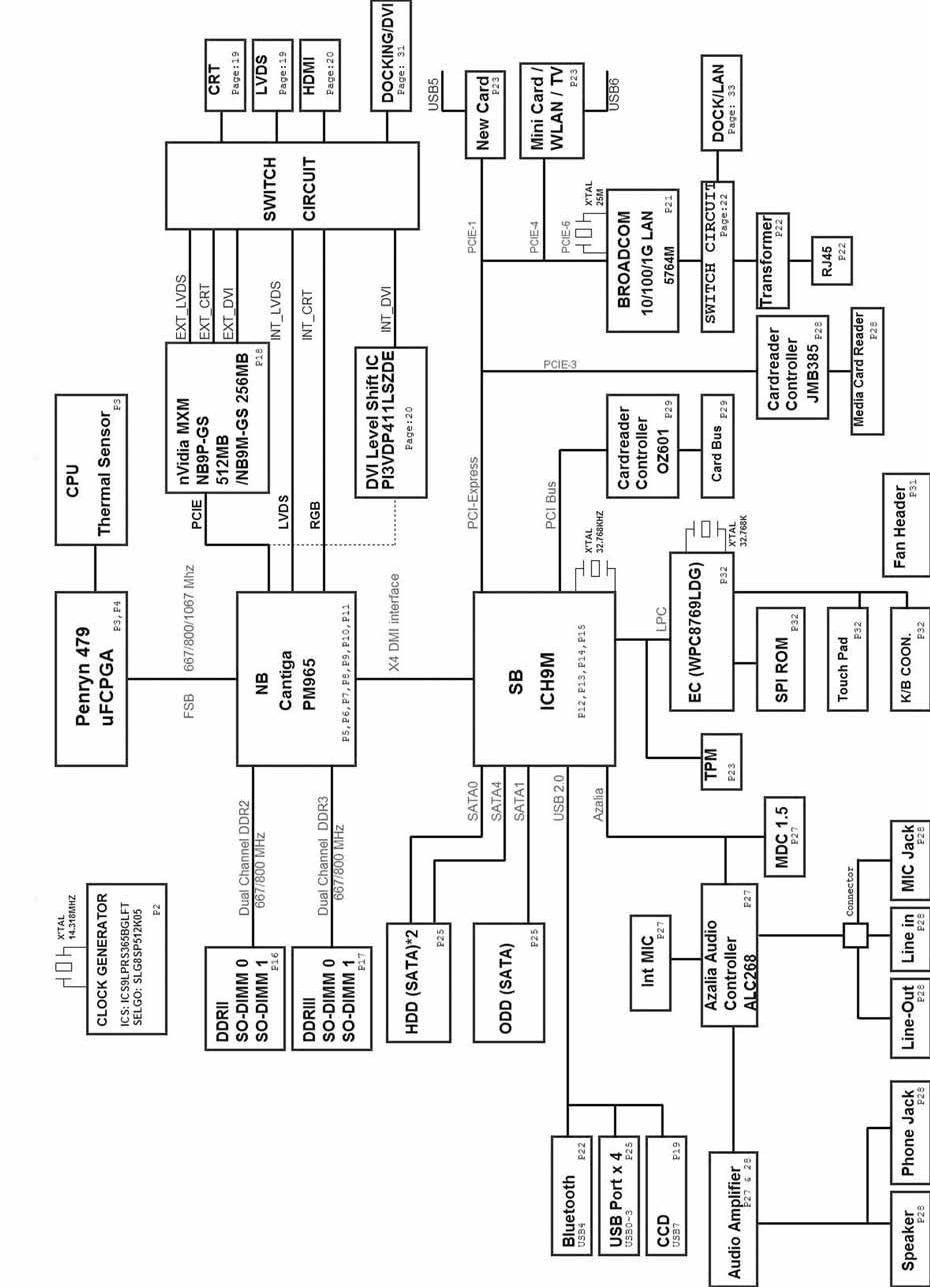

System block diagram

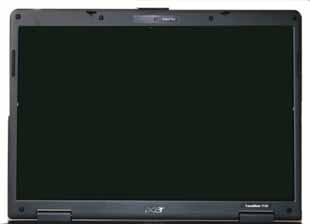

LCD panel

Display screen Acer Crystal Eye

Item Description Display screen Also called Liquid-Crystal Display (LCD), displays video output. Acer Crystal Eye Web camera for video communication. (Available on select models only.)
