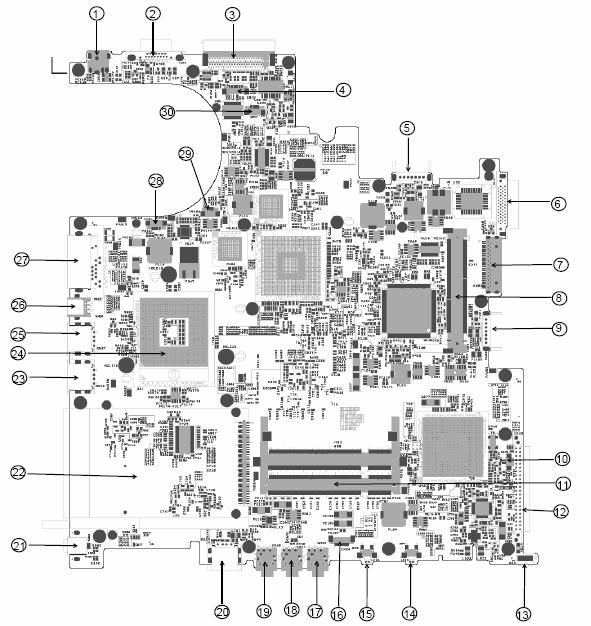

Bottom View

1 Power Jack 16 Audio Cable Connector 2 CRT 17 Line-in Connector 3 No docking port for TM4010 18 Headphone Out Connector 4 Audio Cable Connector 19 Microphone-in Connector 5 Main Battery Connector 20 USB Connector 6 ODD Connector 21 No IEEE 1394 Connector for TM4010 7 Media Bay Connector 22 PCMCIA 8 Mini PCI Slot 23 USB Connector 9 Second Battery Connector 24 CPU Socket 10 RTC Battery Connector 25 USB Connector 11 DDR DIMM Connector 26 No S-Video for TM4010 12 HDD Connector 27 RJ45 and RJ11 Connector

13 No IR for TM4010 28 LAN Cable Connector 14 Bluetooth Switch 29 FAN Connector 15 Wireless Switch 30 LAN Cable Connector
