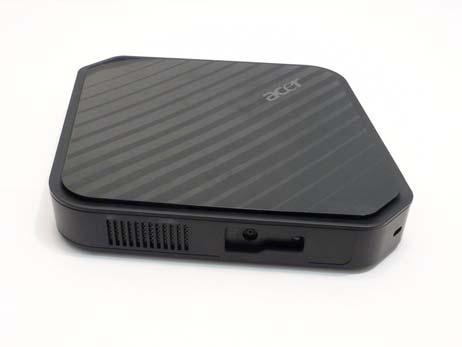

Removing the Upper Cover

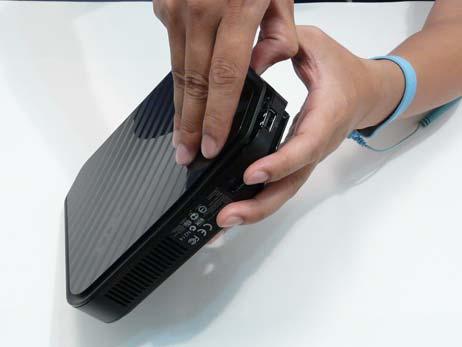

If necessary first remove any mounts that may be attached to the unit. See “Removing the Stand” on page 10. See “Removing the Monitor Mount” on page 11. 1. Remove the one (1) screw.

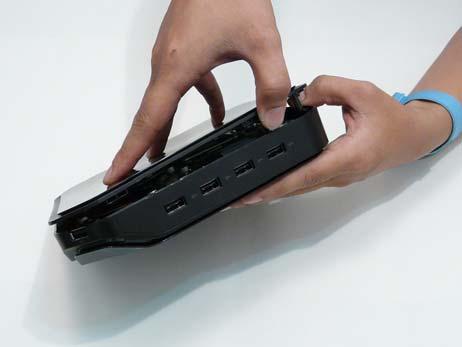

2. Insert a plastic tweezer end or other soft tool to lever open the upper cover from the lower cover in the side location shown.

NOTE: Ensure to open in the middle of the side as there are latches to either side of the location.

Step

Removing the Upper Cover

Size

M2*6 1

Quantity Screw Type

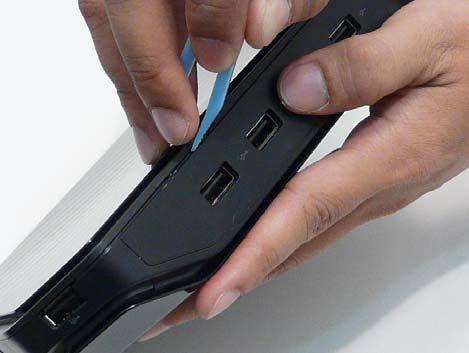

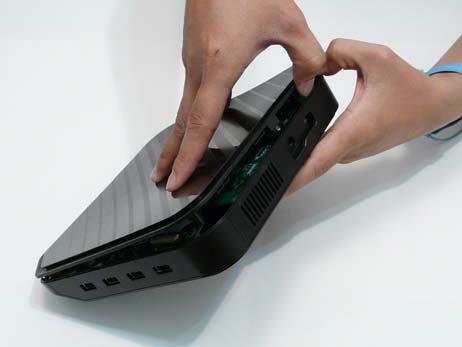

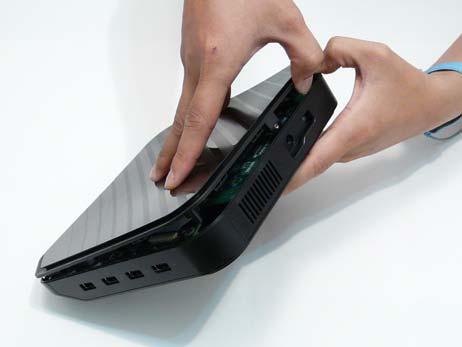

4. Proceed to pry open the upper cover around the edges of the graphic dock.

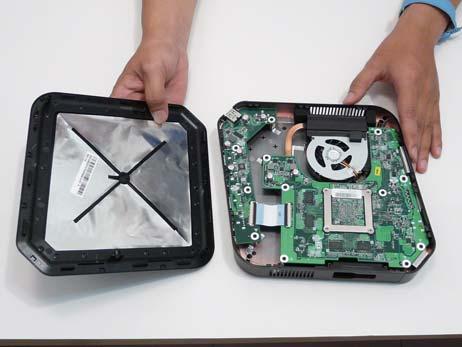

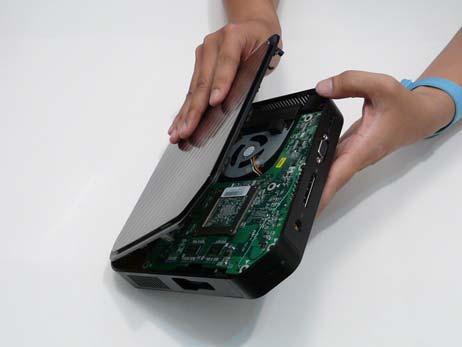

5. Lift the upper cover off.
