Removing the ODD Module

from Acer Aspire idea 500510 Series laptop Service Guide Manual - PDF DOWNLOAD

Before You Begin

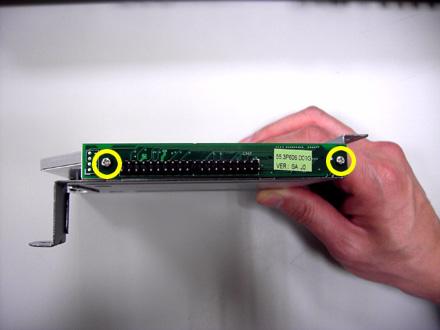

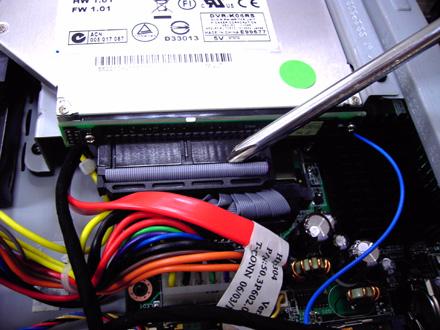

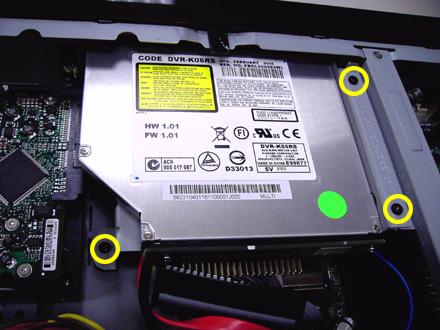

1.Pull and disconnect the IDE cable. 2.Release the three screws holding the ODD module bracket then remove the ODD module. 3.Release the two screws holding the IDE board then remove the IDE board. 4.Release the three screws securing the ODD module bracket then remove the bracket.

Removing the ODD Module
