Fuel Tank Cap - Clean

7. Install new seals on screw and glass bowl. 8. Align glass bowl to canister and install screw.

Torque to 5 Nm (44 lb-in). 9. Replace secondary fuel filter.

Secondary Filter

1. Place suitable container under fuel filter. 2. Clean outside of filter and remove canister (5). 3. Install new canister and tighten by hand. 4. Prime the fuel system. Refer to Operation and

Maintenance Manual, "Fuel System - Prime" for further instructions. 5. Start the engine and check for leaks.

Illustration 233 g01202853

The fuel filler cap is located behind protection cover (3) on the left side of the cab. Note: Before the machine is refueled or before the fuel filler cap is cleaned, remove foreign material from the top of the fuel tank.

1. In order to open protection cover (3), unlock lock (2) and turn lock (4) counterclockwise. Then, pull latch (1) outward.

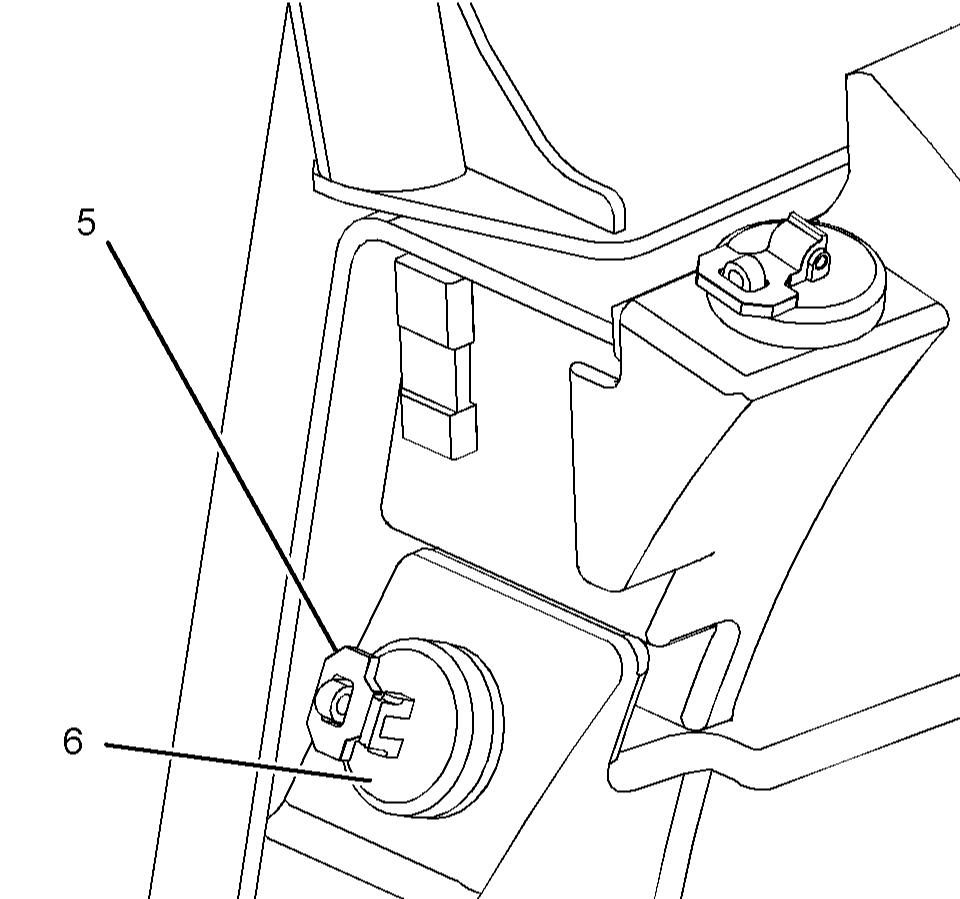

Illustration 234 g01204058
